Product Overview: AD9249BBCZ-65 from Analog Devices Inc.

The AD9249BBCZ-65 is a cutting-edge, high-performance, 16-channel, 14-bit, 65 MSPS analog-to-digital converter (ADC) designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This ADC is part of the AD9249 family that provides a multi-channel data acquisition system with a flexible interface and low power consumption, making it an ideal choice for a wide range of applications, including medical imaging, data acquisition systems, and communications.

Key Features:

• High Resolution: The AD9249BBCZ-65 features a 14-bit resolution which enables precise signal conversion, ensuring high-fidelity representation of the input signal.
• Multi-Channel: With its 16 integrated ADC channels, this device offers extensive data acquisition capabilities, allowing for simultaneous sampling of multiple signals.
• Sampling Rate: A sampling rate of 65 MSPS (Mega Samples Per Second) allows for accurate capture of high-frequency signals, making it suitable for demanding applications.
• Serial LVDS Outputs: The ADC employs low-voltage differential signaling (LVDS) for its serial output drivers, which helps to minimize noise and power consumption while transferring data at high speeds.
• Power Efficiency: Designed with power efficiency in mind, the AD9249BBCZ-65 provides an optimal balance between performance and power consumption, suitable for power-sensitive applications.
• Integrated Features: The device includes features such as a flexible SPI interface for configuration, internal voltage reference, and sample-and-hold circuits, simplifying system design and reducing external component requirements.

Applications:

• Medical Imaging Systems
• Communications Infrastructure
• Data Acquisition Systems
• Instrumentation and Control
• Radar and Satellite Systems

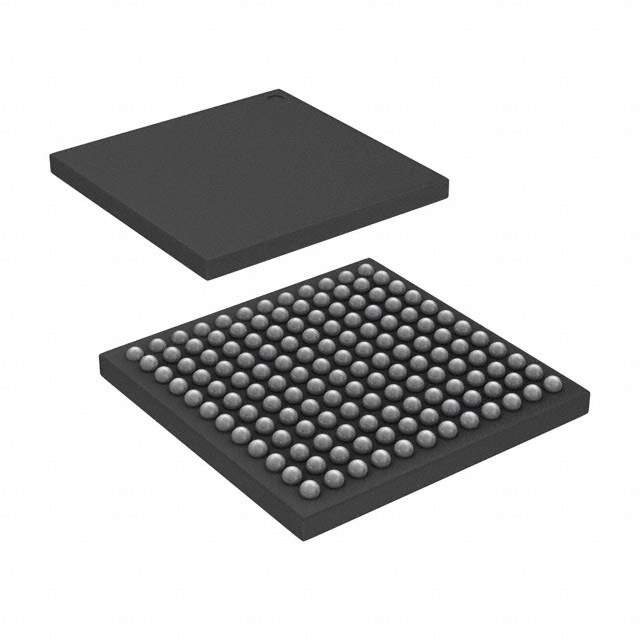

The AD9249BBCZ-65 is available in a compact, surface-mount, 144-ball chip-scale package (CSPBGA) that is suitable for space-constrained applications. Its robust design and advanced features ensure reliable performance across a variety of environmental conditions, making it a versatile choice for system designers looking to leverage high-speed, multi-channel data conversion.
