AD8436-EVALZ Evaluation Board by Analog Devices Inc.

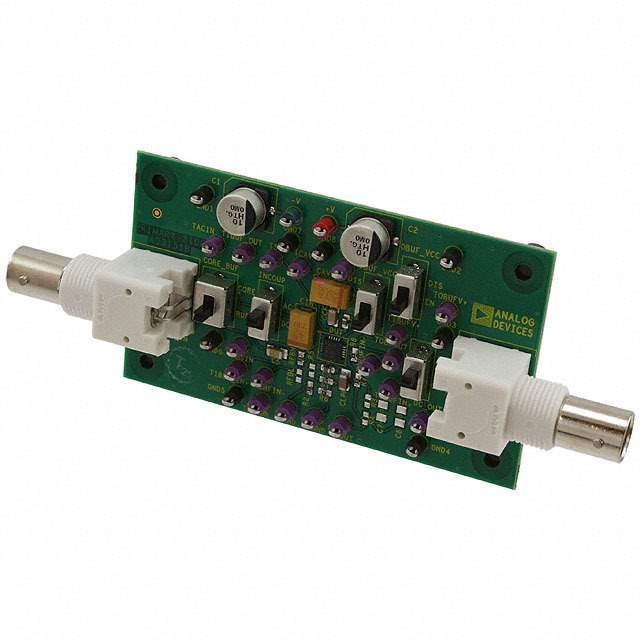

The AD8436-EVALZ from Analog Devices Inc. is a top-of-the-line evaluation board designed for the AD8436, a new generation of high precision, low power, true RMS-to-DC converter that has the ability to accurately measure complex waveforms. It offers users a robust platform for testing and analyzing the performance of the AD8436 chip in various applications.

This evaluation board facilitates the assessment of all features of the AD8436, which is well-suited for a wide range of applications, including precision instrumentation, power quality monitoring, and industrial process control. The AD8436 chip itself is remarkable for its ability to provide a true RMS output, a feature that makes it highly effective in environments where the waveform is distorted or noisy, ensuring accurate readings regardless of the waveform shape.

The AD8436-EVALZ is user-friendly and requires minimal setup to begin testing. It is equipped with a variety of test points and connectors that allow for easy interfacing with external circuitry and equipment. The board includes options to configure the AD8436 chip for different modes of operation, enabling users to explore the full range of its capabilities.

Key features of the AD8436-EVALZ include:

• Direct access to the AD8436 chip for in-depth evaluation
• Flexible power supply options to accommodate various testing scenarios
• Comprehensive test points and connectors for signal input and output
• On-board reference voltage and buffer for enhanced measurement precision
• Clear silkscreen labels to assist in identifying components and connections

The evaluation board comes with detailed documentation that includes a user guide, schematics, and layout diagrams, making it easier for engineers and designers to get up to speed quickly and start experimenting with the AD8436 chip. Whether you're developing new products or researching the potential of true RMS-to-DC conversion, the AD8436-EVALZ from Analog Devices Inc. provides a reliable and convenient platform for your evaluation needs.
