Product Overview: AD8315ACPZ-REEL7 from Analog Devices Inc.

The AD8315ACPZ-REEL7 is a precision, low-cost, fully integrated RF power detector from the esteemed manufacturer Analog Devices Inc. Designed to provide a versatile solution for power measurement over a wide frequency range, this device is housed in a compact LFCSP (Lead Frame Chip Scale Package) that is suitable for space-constrained applications.

Key Features

• Frequency Range: The AD8315 is capable of operating over a frequency range from 100 MHz to 2.7 GHz, making it ideal for a variety of RF applications.
• Dynamic Range: It boasts a large dynamic range of 50 dB, which ensures accurate detection over a wide range of input power levels.
• Linear-in-dB Response: The device provides a linear-in-dB output voltage that is directly proportional to the input signal power level, simplifying system design and integration.
• Single Supply Operation: The AD8315 can operate from a single supply voltage ranging from 2.7 V to 5.5 V, accommodating a variety of power environments.
• Low Power Consumption: With a typical supply current of only 3.5 mA, this power detector is optimized for low-power applications.
• Temperature Stability: The device features excellent temperature stability, ensuring consistent performance across its specified operating temperature range.

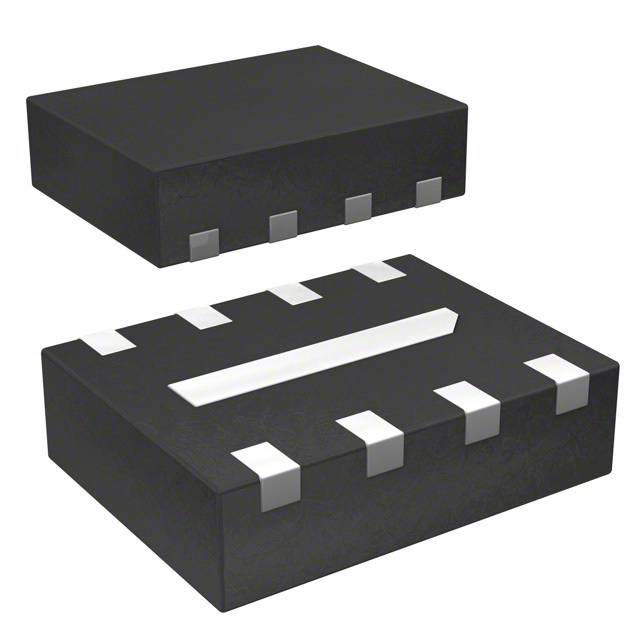

• Package Type: It is offered in an 8-lead LFCSP package, which is RoHS compliant and designed for easy integration into your circuit designs.

Applications

The AD8315ACPZ-REEL7 is suitable for a wide range of applications, including:

• Wireless base stations
• RF power amplifier control loops
• Transmitter leakage detection
• Logarithmic amplifiers
• RSSI (Received Signal Strength Indication) for terminal devices

Quality and Reliability

Analog Devices Inc. is known for its high-quality products, and the AD8315ACPZ-REEL7 is no exception. It is manufactured to meet rigorous industry standards, ensuring reliability and performance in even the most demanding environments.

Whether you are designing for commercial, industrial, or military applications, the AD8315ACPZ-REEL7 from Analog Devices Inc. offers an efficient and reliable solution for RF power detection and measurement.
