AD8224HBCPZ-R7: High-Performance Instrumentation Amplifier

The AD8224HBCPZ-R7 is a high-precision instrumentation amplifier manufactured by Analog Devices Inc., a leader in high-performance analog technology. This device is designed to offer a perfect blend of accuracy, low noise, and ease of use for a wide range of applications, including medical instrumentation, industrial process controls, and precision data acquisition systems.

Key Features

• Precision Performance: The AD8224HBCPZ-R7 boasts a high gain accuracy and low distortion, making it ideal for applications that require precise signal amplification.
• Low Noise: With its low input noise specifications, this instrumentation amplifier ensures a clean signal amplification, which is critical for high-performance applications.
• Flexible Gain Settings: The device features user-selectable gain settings that can be adjusted via external resistors, providing versatility and customization for various applications.
• Low Offset Voltage: The low input offset voltage of the AD8224HBCPZ-R7 reduces the need for external calibration and simplifies circuit design.
• Single-Supply Operation: This amplifier is capable of operating from a single supply, which is beneficial for portable and compact designs.
• Rail-to-Rail Output: The rail-to-rail output stage of the AD8224HBCPZ-R7 maximizes dynamic range, especially important in single-supply operations and low-voltage applications.

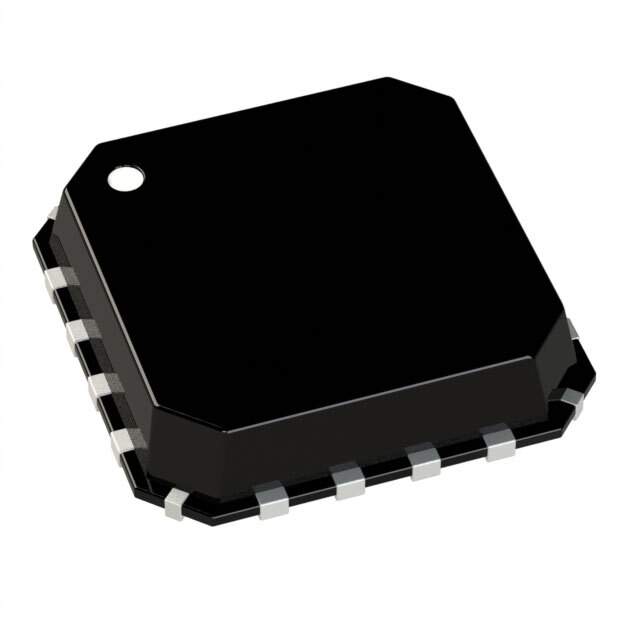

• Robust Packaging: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the AD8224HBCPZ-R7 is designed for space-constrained applications while providing excellent thermal performance.

Applications

The AD8224HBCPZ-R7 is well-suited for a variety of applications, including:

• Medical Devices: ECG, EEG, patient monitoring systems.
• Industrial Automation: Process control systems, PLCs, and transducer interfaces.
• Automotive Systems: Sensor signal conditioning, battery management, and diagnostic equipment.
• Consumer Electronics: High-fidelity audio processing and precision sensors.

With its combination of performance, versatility, and reliability, the AD8224HBCPZ-R7 from Analog Devices Inc. is an excellent choice for designers who require a high-quality instrumentation amplifier for their next project.
