Product Overview: AD820ARZ by Analog Devices Inc.

The AD820ARZ is a high-performance, low-power FET input operational amplifier manufactured by Analog Devices Inc., a leader in precision high-performance electronics. This operational amplifier is designed to cater to a wide range of applications that require a good balance between cost and performance, including medical devices, industrial control systems, and battery-powered instruments.

Key Features:

• Single-Supply Operation: The AD820ARZ can operate from a single power supply ranging from +3 V to +36 V, or from dual supplies of ±1.35 V to ±18 V, making it highly versatile for various circuit configurations.
• Low Power Consumption: With a typical quiescent current of just 800 µA, this op-amp is an excellent choice for power-sensitive applications.
• High Input Impedance: The FET input stage of the AD820ARZ provides a high input impedance, making it suitable for applications where input loading is a concern.
• Low Offset Voltage: The device features a low input offset voltage, which enhances accuracy in precision applications.
• Rail-to-Rail Output Swing: The output can swing close to the rails, maximizing the dynamic range when operating from low supply voltages.
• Stable with Capacitive Loads: The AD820ARZ is designed to be stable with capacitive loads up to 10 pF, which is beneficial for driving A/D converters or buffering the output of digital-to-analog converters (DACs).

Applications:

The AD820ARZ is well-suited for a variety of applications, including:

• Photodiode amplification
• Medical instrumentation
• Sensor signal conditioning
• Portable or remote electronics
• Active filters
• Buffer amplifiers

With its combination of low power operation and high precision, the AD820ARZ from Analog Devices Inc. is an excellent choice for designers who need an operational amplifier that can perform reliably in a range of conditions without sacrificing power efficiency. Its robust design and versatile features make it a go-to component for engineers looking to enhance the performance of their electronic systems.

Quality and Reliability:

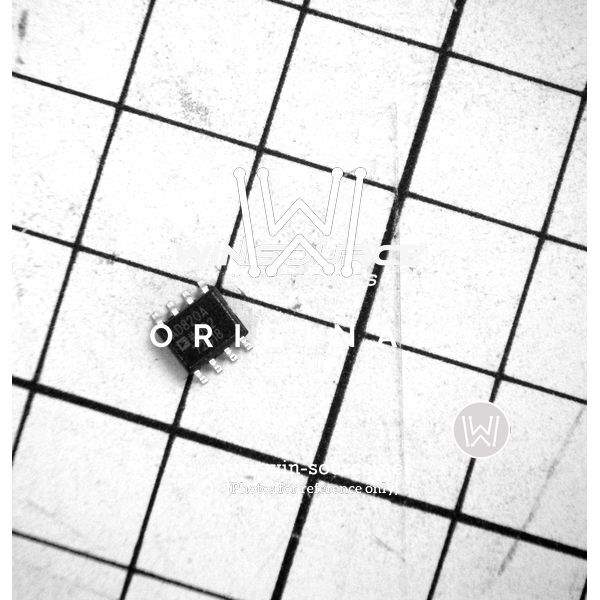

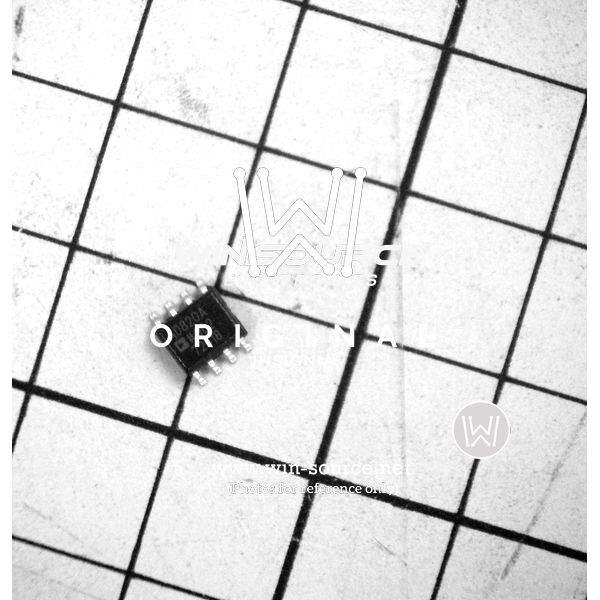

Analog Devices Inc. is known for its commitment to quality, and the AD820ARZ is no exception. It is available in an 8-lead SOIC package, ensuring compatibility with standard surface-mount PCB assembly processes, and is specified over the extended industrial temperature range of -40°C to +85°C.
