AD7814ARTZ-REEL7 - A High-Precision Digital Temperature Sensor

The AD7814ARTZ-REEL7 is a high-performance digital temperature sensor from Analog Devices Inc., designed to provide precise temperature measurements in a variety of applications. This sensor operates over a -40°C to +105°C temperature range, making it suitable for environmental control systems, thermal protection, and industrial process control, among other uses.

Constructed with the advanced silicon IC technology, the AD7814ARTZ-REEL7 offers a 10-bit temperature data output, which translates into a resolution of 0.25°C. This high resolution ensures that minute temperature variations can be detected and acted upon, providing systems with the ability to maintain stringent temperature control.

One of the key features of this temperature sensor is its digital interface. The sensor communicates with microcontrollers or other digital systems via a simple Serial Peripheral Interface (SPI) that simplifies integration into existing designs. This digital output eliminates the need for analog-to-digital converters and reduces the complexity and cost of the overall system design.

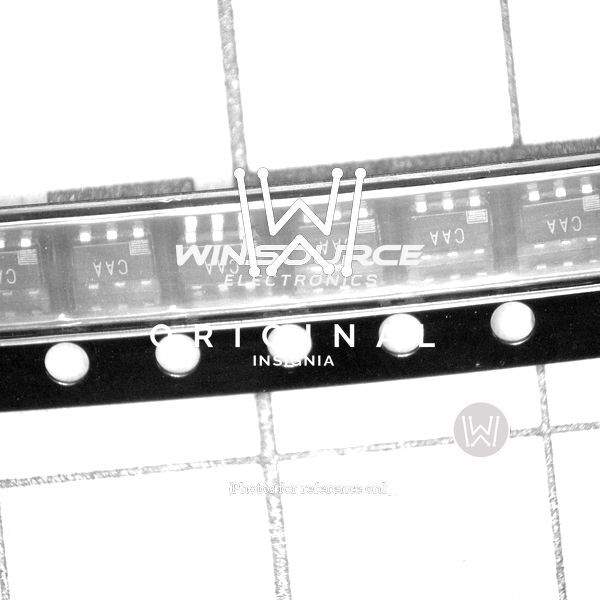

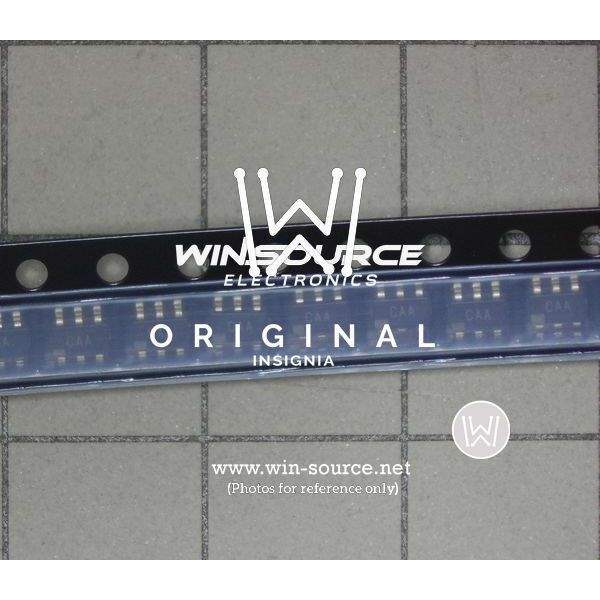

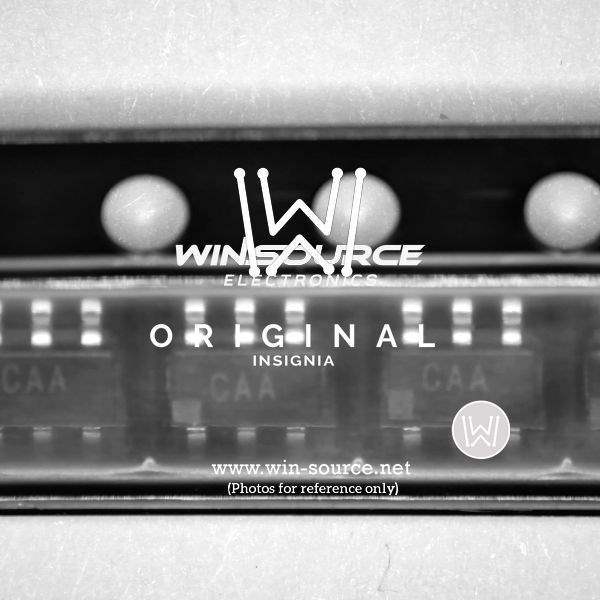

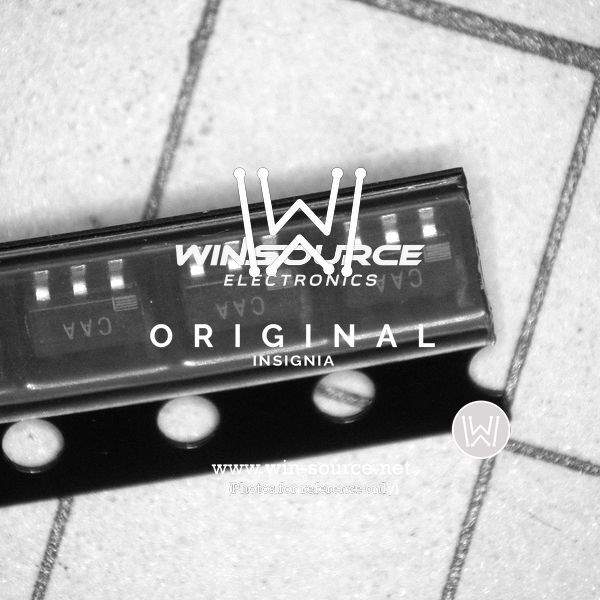

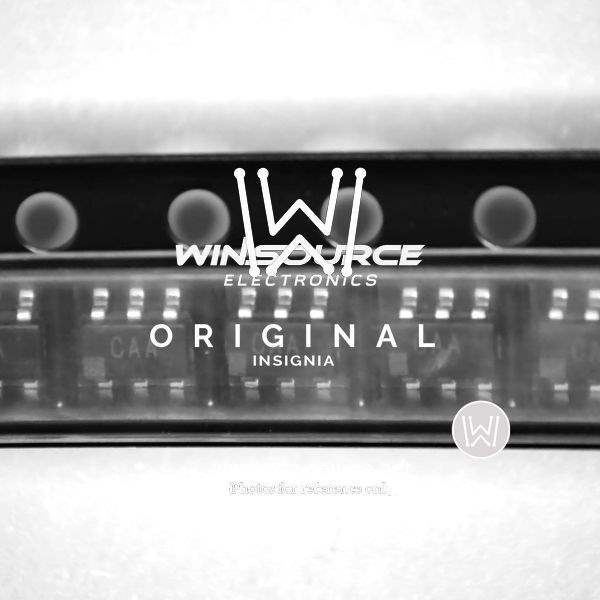

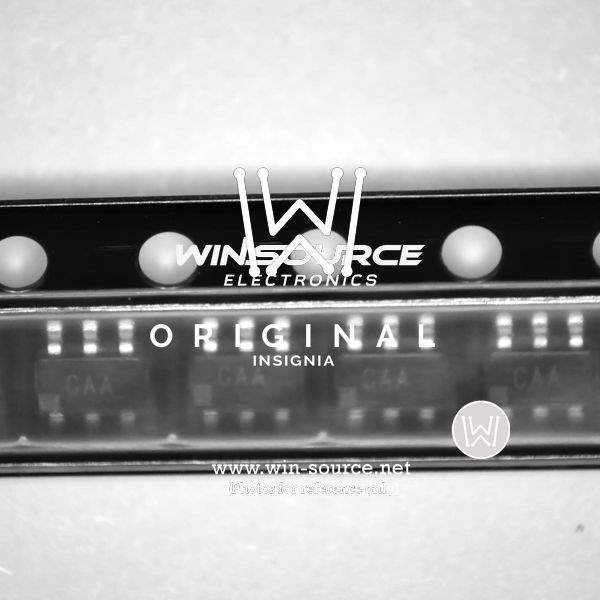

The AD7814ARTZ-REEL7 comes in a compact SOT-23 package, making it an ideal choice for space-constrained applications. Despite its small size, it does not compromise on performance, offering excellent temperature accuracy and low power consumption. The device operates with a single supply voltage ranging from 2.7V to 5.5V, which allows for flexibility in various power environments and battery-powered applications.

Furthermore, the sensor includes a shutdown mode that reduces the power consumption to a mere 1 µA, making it highly suitable for portable and battery-powered devices where power efficiency is critical. The quick response time of the sensor ensures that temperature changes are reported promptly, enabling real-time monitoring and control.

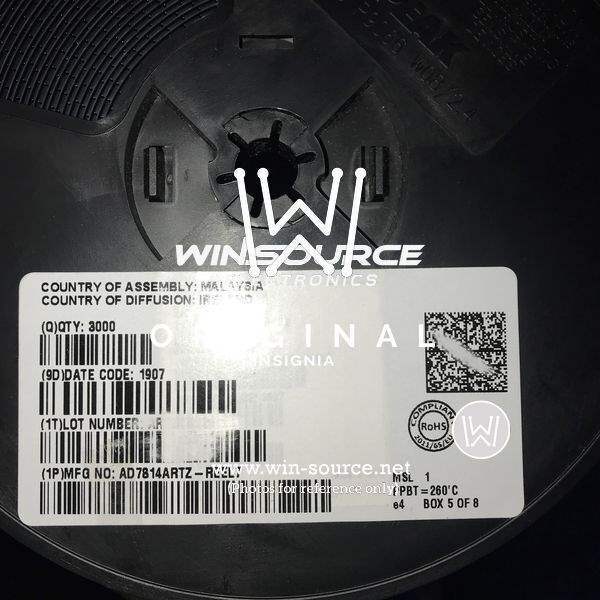

In summary, the AD7814ARTZ-REEL7 is a versatile and accurate temperature sensor that offers digital output, low power consumption, and a small footprint. It is provided in tape and reel form for ease of manufacturing and is an excellent choice for designers looking to incorporate reliable temperature sensing into their systems.
