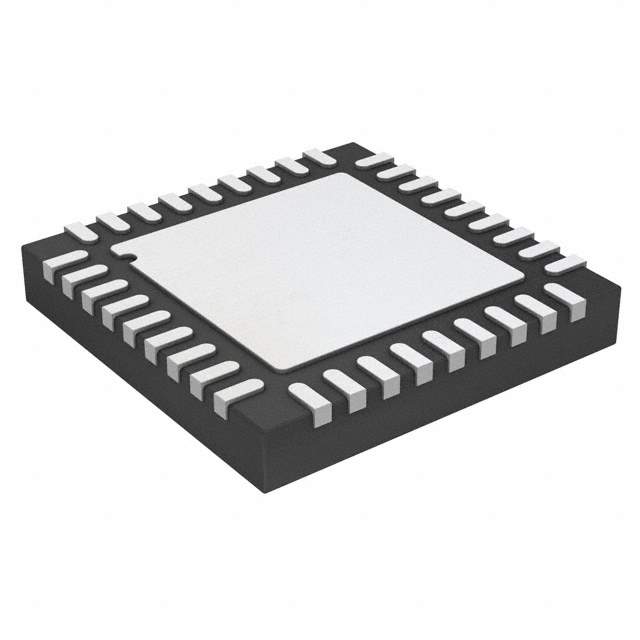

AD7292BCPZ-RL

Part No AD7292BCPZ-RL
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 10-Bit Monitor and Control System with ADC,DACs, Temperature Sensor, and GPIOs | IC ADC 10BIT SAR 36LFCSP-WQ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tape and Reel
Resolution 10
Sampling Rate (Per Second) 625k
Number of Inputs 1, 8
Input Type Differential, Single Ended
Data Interface SPI
Configuration MUX-S/H-ADC
Number of A/D Converters 1
Architecture SAR
Reference Type External, Internal
Supply Voltage , Analog 5V
Supply Voltage , Digital 1.8V ~ 5.25V
Features Temperature Sensor
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 36-WFQFN Exposed Pad, CSP
Supplier Device Package 36-LFCSP-WQ (6x6)
Mounting Style SMD
Family Part Number AD7292
Manufacturer Pack Quantity 2,500
MSL Level 3 (168 Hours)
Win Source Part Number 717454-AD7292BCPZ-RL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AD7292BCPZ-RL CAD Model

Description

Product Overview: AD7292BCPZ-RL by Analog Devices Inc.

The AD7292BCPZ-RL is a high-performance, low-power, octal, 12-bit analog-to-digital converter (ADC) with an integrated temperature sensor, designed and manufactured by the renowned Analog Devices Inc. This component is tailored for precision data acquisition systems, providing accurate and reliable digital representations of analog signals in a compact LFCSP package.

Key Features:

  • Resolution: 12-bit resolution offers a fine granularity in analog-to-digital conversion, ensuring detailed and precise measurements.
  • Integrated Temperature Sensor: An on-chip temperature sensor provides additional functionality, allowing for temperature monitoring and compensation within the system.
  • Low Power Consumption: Designed with power-sensitive applications in mind, the AD7292BCPZ-RL ensures efficient operation, making it suitable for portable and battery-powered devices.
  • Package: The device is housed in a space-saving LFCSP (Lead Frame Chip Scale Package), which is ideal for compact electronics where board space is at a premium.
  • Multi-Channel Operation: With eight channels, this ADC can process multiple analog inputs simultaneously, enhancing the throughput and flexibility of the system.

Applications:

The AD7292BCPZ-RL is versatile and can be used in a variety of applications, including but not limited to:

  • Industrial Automation
  • Medical Instruments
  • Data Acquisition Systems
  • Battery-Powered Devices
  • Instrumentation and Control Systems

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality, and the AD7292BCPZ-RL is no exception. Each component is rigorously tested to meet high standards of performance and reliability, ensuring that the product you receive is ready for integration into your advanced electronic systems.
