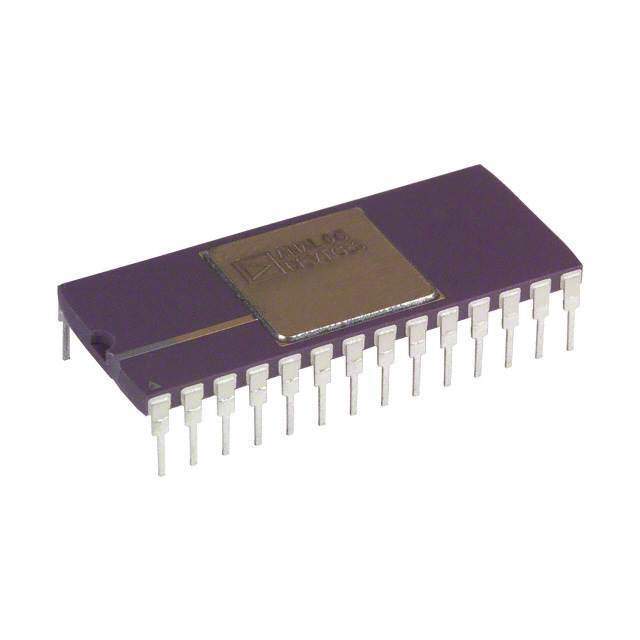

The AD664BD-BIP is a monolithic 12-bit digital-to-analog converter (DAC) engineered by Analog Devices Inc., a leader in high-performance analog technology. This precision DAC is designed for applications where a stable and accurate voltage output is crucial, such as in industrial control systems, automated test equipment, and high-resolution data acquisition systems.

Key Features

• 12-Bit Resolution: The AD664BD-BIP offers a fine resolution which ensures precise control over the analog output, making it suitable for applications that demand high levels of accuracy.
• Monolithic Design: Integrating all the necessary components into a single chip, this DAC provides a compact solution that reduces system complexity and enhances reliability.
• Four Separate DACs: It contains four independent DACs in one package, offering flexibility for multiple-output applications or complex waveform generation.
• Bipolar Output: The device is capable of providing both positive and negative voltage outputs, which is essential for driving bipolar actuators or interfacing with analog circuits that operate around a zero reference.
• High Stability: With excellent temperature stability and low drift, the AD664BD-BIP maintains its accuracy over a wide range of environmental conditions.

Applications

The versatility of the AD664BD-BIP makes it an ideal choice for a variety of demanding applications. Its precise control capabilities are particularly beneficial in:

• Industrial Control Loops
• Automated Test Equipment (ATE)
• Data Acquisition Systems
• Process Control Systems
• Robotics and Automation

Technical Specifications

This DAC operates from a ±15 V power supply and features a settling time of 4 µs to ±1/2 LSB, which allows for rapid updates to the output voltage. Its data inputs are TTL/CMOS compatible, ensuring easy integration with digital systems. The AD664BD-BIP is available in a 28-lead DIP package and is specified over the -55°C to +125°C temperature range.

For detailed technical specifications, application notes, and support resources, please refer to the official datasheet provided by Analog Devices Inc.
