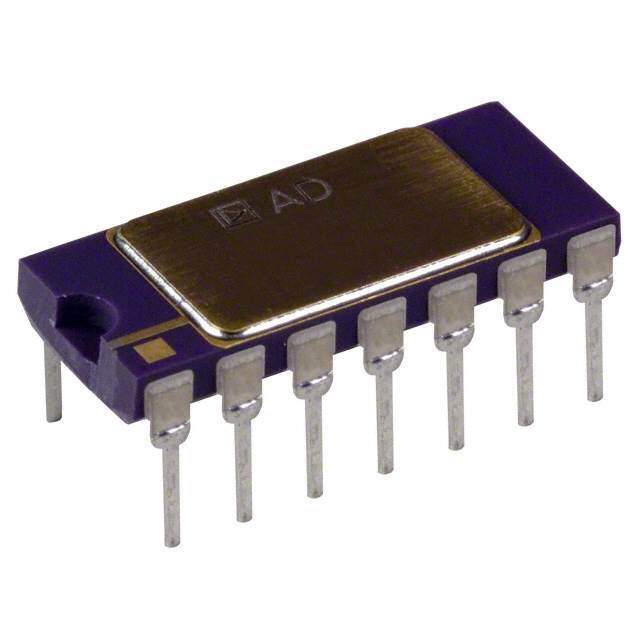

Analog Devices Inc. AD632ADZ Precision Analog Multiplier

The AD632ADZ is a high-precision analog multiplier that comes from the reputable manufacturer Analog Devices Inc. This innovative component is designed to offer excellent accuracy and a wide dynamic range, making it an ideal choice for an array of applications including modulation, signal processing, and automatic gain control circuits.

Key Features

• High Accuracy: The AD632ADZ boasts a nonlinearity specification of a mere 0.1% maximum at a 10 V peak differential output. This ensures precise multiplication of input signals without significant deviation from the ideal transfer function.
• Wide Dynamic Range: It can accept a wide range of input voltages while maintaining its high level of accuracy, making it versatile for various signal levels.
• Low Power Consumption: With a typical power supply requirement of ±15 V, the AD632ADZ is designed for energy-efficient operation, an essential feature for battery-powered and energy-conscious applications.
• Monolithic Construction: The device is built using a monolithic construction which enhances its reliability and performance consistency.
• Easy to Use: The AD632ADZ requires no external components for a full-scale calibration, simplifying its implementation in a circuit and reducing the overall component count.

Applications

The AD632ADZ is adept at handling a wide variety of applications where signal multiplication is required. It is commonly used in:

• Modulators and demodulators for communications
• Automatic gain control systems
• Signal processing circuits such as filters and oscillators
• Analog computation for industrial process control systems
• Video processing

Product Specifications

This analog multiplier comes in a compact 14-lead PDIP package, ensuring easy integration into existing designs without taking up excessive board space. The AD632ADZ operates over a temperature range of -55°C to +125°C, catering to extreme environmental conditions and guaranteeing reliable performance across a broad spectrum of operating scenarios.

With its combination of high precision, ease of use, and robustness, the AD632ADZ from Analog Devices Inc. is a standout solution for designers looking to implement an analog multiplier in their next project.
