The AD598AD from Analog Devices Inc. is a sophisticated LVDT (Linear Variable Differential Transformer) signal conditioning device designed to work with a wide range of LVDTs, RVDTs (Rotary Variable Differential Transformers), and similar inductive transducers. This integrated circuit provides all the required signal conditioning functions to translate transducer mechanical position to a unipolar or bipolar DC voltage with high precision and stability.

Key Features

• Complete Signal Conditioning: The AD598AD includes an oscillator, demodulator, filter, and a stable reference source, which makes it a complete solution for LVDT signal processing.
• Wide Input Frequency Range: It supports a broad frequency range, typically from 20Hz to 20kHz, allowing it to be compatible with a variety of LVDTs and RVDTs.
• Adjustable Gain and Frequency: Users can adjust the gain and frequency settings through external components, offering flexibility for different applications.
• High Precision: With its precise signal conversion, it ensures accurate position sensing, which is critical for high-performance control systems.
• Low Power Consumption: The AD598AD is designed for efficiency, with a low power consumption that makes it suitable for battery-powered or energy-sensitive applications.

Applications

The AD598AD is ideal for use in a variety of industrial and commercial applications where precise position sensing is required. These applications include:

• Factory automation and robotics
• Aerospace and defense systems
• Automotive position sensors
• Medical equipment
• Material handling and process control

Technical Specifications

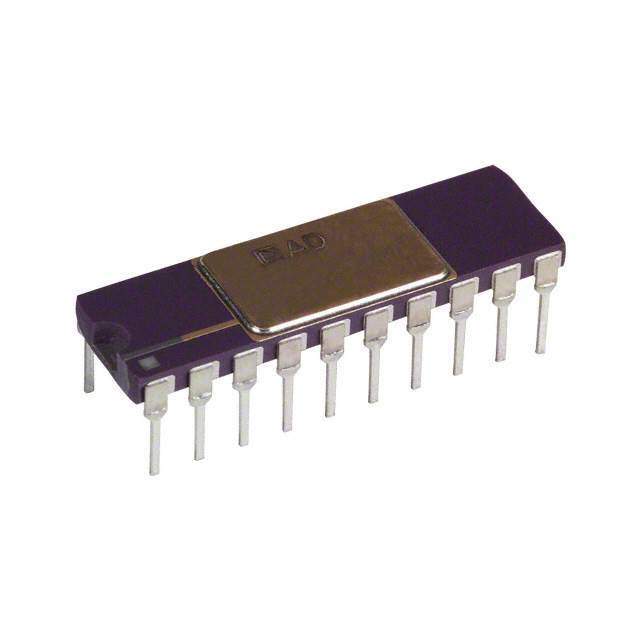

The AD598AD operates over a temperature range of -40°C to +85°C and is available in a 20-pin DIP (Dual In-line Package) or LCCC (Leadless Chip Carrier) package. It requires a single supply voltage between +10V to +36V or a dual supply of ±5V to ±18V. The device is designed for robust performance in harsh industrial environments and ensures a high degree of reliability.

For engineers and designers looking for a reliable LVDT signal conditioner, the AD598AD by Analog Devices Inc. offers a high-performance solution that simplifies the design and enhances the functionality of position-sensing systems.
