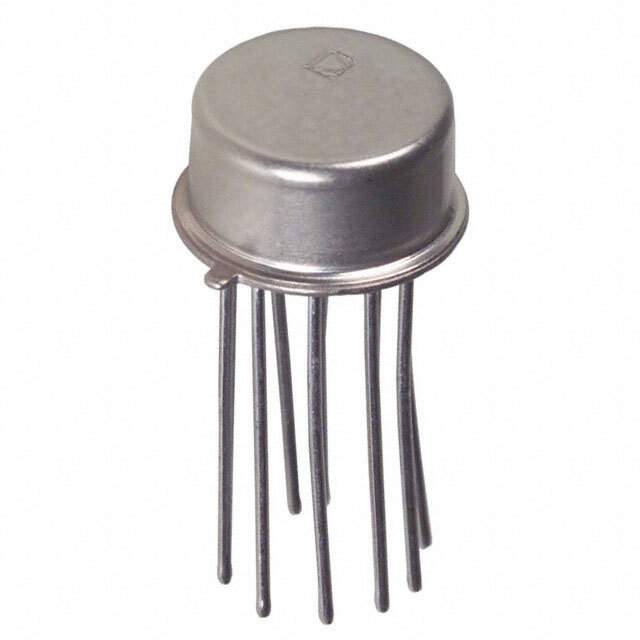

Analog Devices Inc. AD597AH Thermocouple Conditioner

The AD597AH from Analog Devices Inc. is a specialized thermocouple conditioner designed to simplify the process of using thermocouples in temperature sensing applications. This integrated circuit (IC) is specifically engineered to interface directly with a thermocouple and provide a linearized output proportional to the temperature.

The AD597AH operates by taking the low-level millivolt signals from a thermocouple, amplifying them, and converting the signal into a 10mV/°C output, which can be easily read by any standard analog-to-digital converter (ADC) or can be displayed directly on an analog meter. The device is designed to work with type K thermocouples, which are widely used due to their broad temperature range and durability.

One of the key features of the AD597AH is its automatic cold junction compensation. This feature compensates for the temperature variations at the thermocouple's reference junction, providing accurate temperature readings even when the reference junction temperature is not at the standard 0°C. This is critical for maintaining precise temperature measurements in fluctuating environmental conditions.

The AD597AH has a wide power supply range of ±5V to ±15V, making it versatile for various applications. Its robust design includes protection against reverse battery application, enhancing the durability of the device in harsh industrial environments. The compact, 8-lead TO-100 can package allows for easy integration into a wide array of systems.

Applications for the AD597AH include but are not limited to:

• Industrial temperature control systems
• Thermal monitoring and protection
• Process control instrumentation
• Data acquisition systems
• Consumer appliances

The AD597AH is known for its reliability and precision, making it an ideal choice for professionals who require accurate temperature monitoring and control. Analog Devices Inc. ensures that this product meets high-quality standards, providing a dependable solution for temperature measurement challenges.
