The AD589TH is a high precision voltage reference component designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This device is a part of the AD589 series, which is well-known for providing a stable and accurate reference voltage across a wide range of operating conditions.

The AD589TH operates at a nominal reference voltage of 1.235 volts, which is derived from the fundamental bandgap voltage of silicon. This ensures a low temperature coefficient and excellent long-term stability. The component is characterized by its tight output tolerance and low dynamic impedance, making it an ideal choice for precision data conversion in a variety of applications, including industrial, medical, and communication systems.

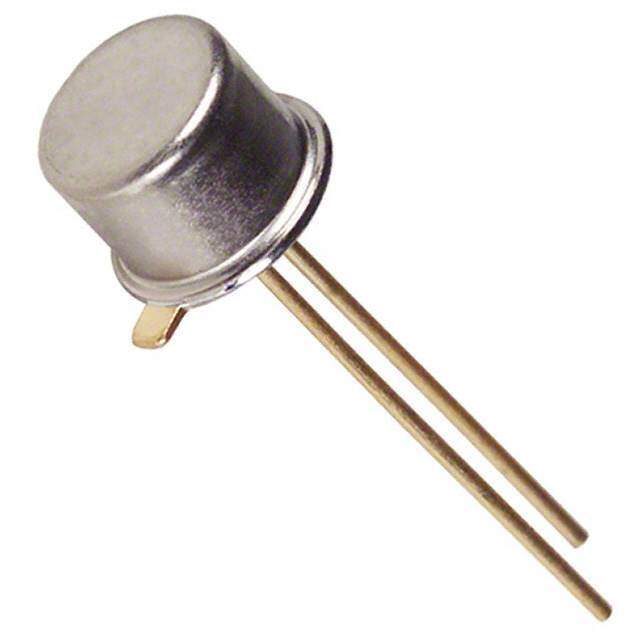

This specific model, the AD589TH, is notable for its high-temperature performance, with an operating range that typically extends from -55°C to +125°C. This makes it exceptionally suitable for harsh environments where temperature fluctuations are a concern. The device is available in a hermetically sealed TO-52 package, ensuring robustness and reliability even under adverse conditions.

Key features of the AD589TH include:

• Fixed 1.235V Output Voltage
• High Accuracy: ±1% Initial Accuracy
• Low Temperature Coefficient: 30 ppm/°C (max)
• Wide Operating Temperature Range: -55°C to +125°C
• Low Dynamic Impedance
• Long-Term Stability
• TO-52 Hermetically Sealed Package

The AD589TH is easy to implement in various circuit designs due to its simple two-pin configuration, which requires no external components for operation. Its high precision and stability make it a reliable reference source for ADCs, DACs, and other sensitive electronic components that demand a stable voltage reference.

Overall, the AD589TH from Analog Devices Inc. represents a blend of performance, durability, and precision, making it an excellent choice for designers looking for a dependable voltage reference solution in their advanced electronic systems.
