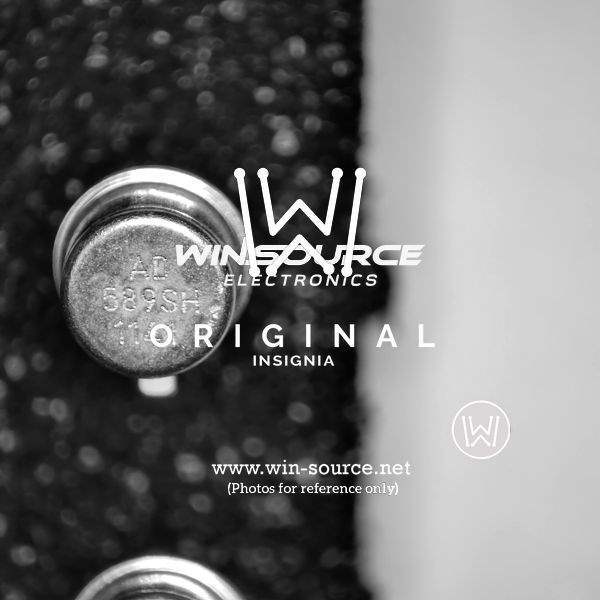

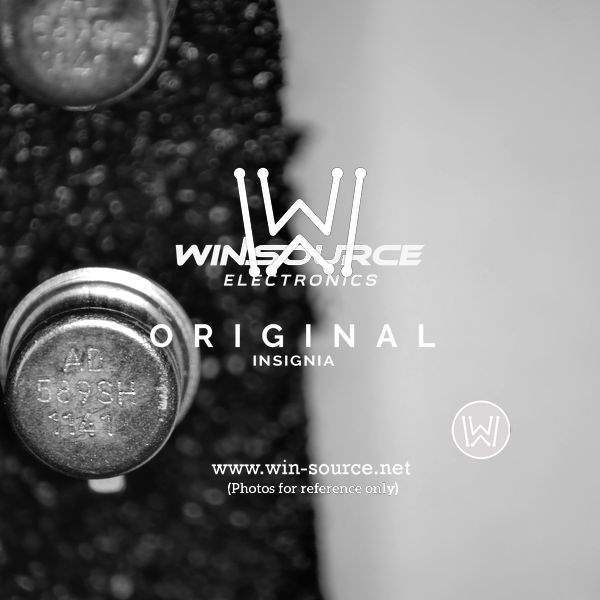

The AD589SH from Analog Devices Inc. is a high-precision voltage reference component renowned for its stability and reliability. This monolithic IC voltage reference operates as a two-terminal 1.235V bandgap reference, providing a stable output voltage over a wide range of operating conditions.

Key Features

• Output Voltage: Precisely 1.235 Volts, which is ideal for various applications requiring a stable reference.
• Temperature Stability: Exhibits excellent temperature stability, making it suitable for use in environments with varying temperatures.
• Low Dynamic Impedance: The dynamic impedance of the AD589SH is low, ensuring a stable output even with load variations.
• Wide Operating Current: Functions effectively across a broad range of operating currents, enhancing its versatility in different circuit configurations.
• High Accuracy: Ensures high accuracy for precision applications, which is critical for sensitive electronic systems.

Applications

The AD589SH is widely used in the electronic industry due to its versatility and precision. Common applications include:

• Battery-powered equipment
• Precision data systems
• Analog-to-digital converters (ADCs)
• Digital-to-analog converters (DACs)
• Portable instrumentation
• Power supplies

Product Specifications

Quality and Reliability

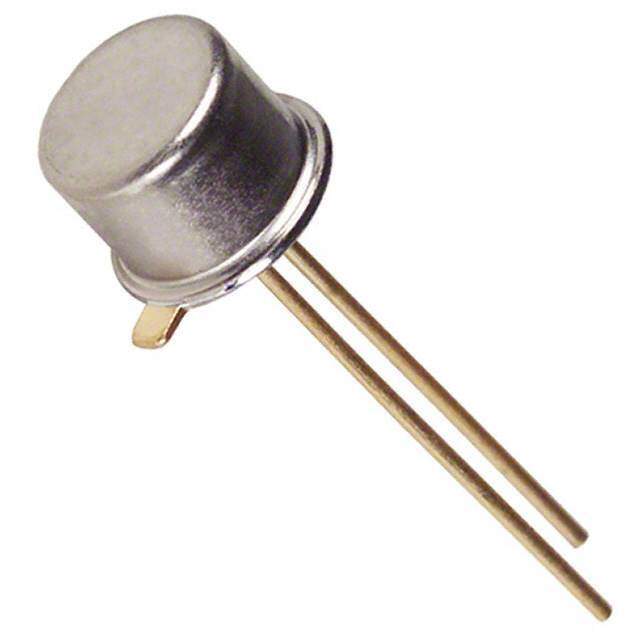

The AD589SH is built to meet the highest quality and reliability standards of Analog Devices Inc. It is rigorously tested to ensure performance across its operational temperature range and is available in a hermetically sealed package for enhanced durability.
