AD5640BCPZ-1RL7: Precision Digital-to-Analog Converter from Analog Devices Inc.

The AD5640BCPZ-1RL7 is a highly integrated digital-to-analog converter (DAC) product from Analog Devices Inc., designed to deliver precision analog output tailored for a wide array of industrial, communication, and consumer applications. This compact DAC is part of a product family known for its reliability and performance in converting digital information into precise analog signals.

Key Features

• Resolution: The AD5640BCPZ-1RL7 boasts a 14-bit resolution, providing fine granularity and a high degree of accuracy in its analog output.
• Output Type: It offers a buffered voltage output, ensuring compatibility with various load types and simplifying interfacing requirements.
• Settling Time: With a fast settling time, this DAC allows for quick updates to the analog output, making it suitable for high-speed applications where response time is critical.
• Power Supply: The device operates on a 2.7V to 5.5V supply range, accommodating a variety of power environments and system design flexibilities.

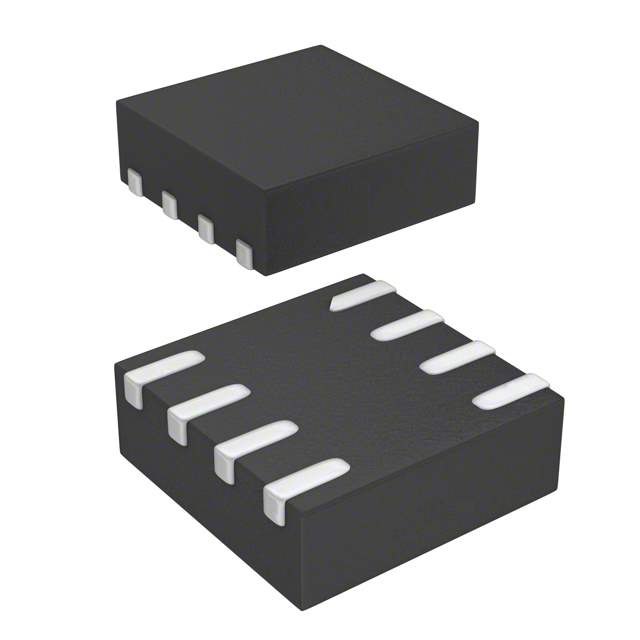

• Package: Enclosed in a compact LFCSP (Lead Frame Chip Scale Package), the AD5640BCPZ-1RL7 is designed for space-constrained applications.
• Temperature Range: Suitable for industrial temperature ranges, it operates reliably between -40°C to +125°C.

Applications

The AD5640BCPZ-1RL7 is versatile and can be employed in several critical applications, including:

• Process control systems
• Data acquisition systems
• Digital gain and offset adjustment
• Programmable voltage and current sources
• Portable battery-powered instruments

Integration and Interface

This DAC features a serial interface that is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards, ensuring ease of integration into existing digital systems. The on-chip output buffer can drive up to 2kΩ loads, providing operational flexibility without the need for external buffer amplifiers.

With its precision performance and robust feature set, the AD5640BCPZ-1RL7 from Analog Devices Inc. stands out as a reliable choice for designers seeking to integrate a high-quality DAC into their systems. Its small footprint and wide operating temperature range make it an excellent option for space-constrained and extreme-environment applications.
