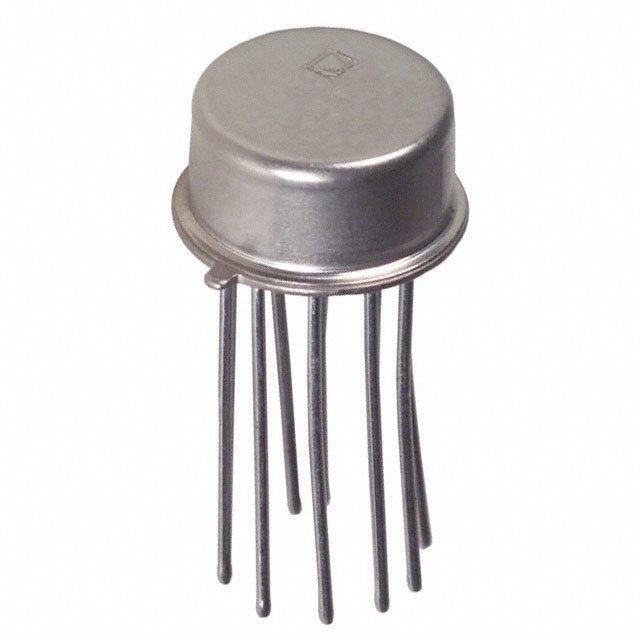

The AD536AJH is a high-precision integrated circuit from Analog Devices Inc., renowned for its exceptional performance in analog signal processing. This advanced component is designed to provide accurate and instantaneous power measurement of voltage and current signals. The AD536AJH is an analog multiplier that computes the true root-mean-square (RMS) value of any complex waveform, making it an indispensable tool for engineers and designers in various fields, including test equipment, instrumentation, and power management systems.

Key Features

• True RMS-to-DC Conversion: The AD536AJH is capable of delivering a stable and accurate DC output that corresponds precisely to the RMS value of the input waveform, regardless of its shape or frequency.
• Wide Bandwidth: With a bandwidth that extends from DC to 450 kHz, this device can handle a wide range of signal frequencies, making it suitable for audio, RF, and other high-frequency applications.
• High Accuracy: The device ensures a high level of accuracy, with a typical error of less than 0.5% of the full-scale reading, ensuring reliable and precise readings in critical applications.
• Low Power Consumption: Engineered for efficiency, the AD536AJH maintains low power consumption, making it ideal for portable and battery-operated equipment.
• Versatile Input Range: The device can accept a wide range of input voltages, from a few millivolts to over 300 V rms, providing flexibility for various signal levels.
• Temperature Stability: The AD536AJH offers excellent temperature stability, minimizing drift and ensuring consistent performance across a wide temperature range.

Applications

The versatile nature of the AD536AJH makes it suitable for a multitude of applications that require precise RMS measurements. These include, but are not limited to:

• Power supply monitoring
• Audio signal processing
• Energy management systems
• Electronic test equipment
• AC motor controls

Package and Quality

The AD536AJH is housed in a robust hermetic package, ensuring long-term reliability and protection against environmental factors. Analog Devices Inc. is committed to the highest standards of quality, and this product meets rigorous industry specifications for performance and durability.
