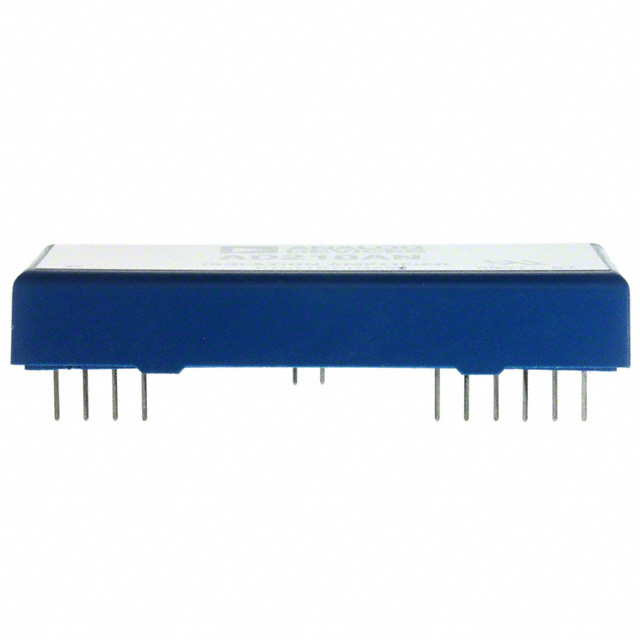

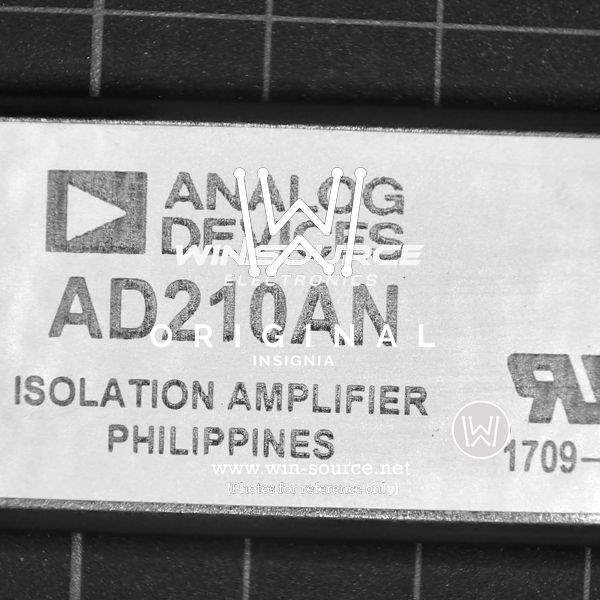

The AD210AN from Analog Devices Inc. is a high-performance isolation amplifier that offers exceptional accuracy and reliability for industrial applications requiring signal isolation. Designed to provide both signal conditioning and electrical isolation, the AD210AN is an ideal solution for a wide range of measurement and control systems.

Key Features:

• High Voltage Isolation: The AD210AN provides a high isolation voltage rating, ensuring that signals are accurately transmitted without interference from common-mode voltages or noise. This feature is crucial for maintaining signal integrity in electrically noisy environments.
• Low Nonlinearity: With a nonlinearity specification of less than 0.01%, the amplifier delivers precise and stable performance, making it suitable for high-precision applications where accuracy is paramount.
• Wide Bandwidth: Offering a bandwidth of up to 20 kHz, the AD210AN is capable of handling a broad range of signal frequencies, which is essential for dynamic measurement systems.
• Three-Port Isolation: The device features three-port isolation between the input, output, and power supply, which helps in breaking ground loops and reducing the risk of damage from surges or transients.
• Low Gain Error: With a gain error of less than 0.1%, users can expect highly accurate amplification of input signals without significant deviation from the expected output.
• Compact and Durable: Housed in a compact DIP package, the AD210AN is designed for space-constrained applications and is built to withstand harsh industrial conditions.

Applications:

The AD210AN isolation amplifier is versatile and can be used in various applications, including:

• Data acquisition systems
• Industrial process controls
• Motor control feedback systems
• Medical instrumentation
• Power monitoring and control

In summary, the AD210AN from Analog Devices Inc. is a robust and precise isolation amplifier that offers excellent performance for applications where signal integrity and isolation are critical. Its combination of high accuracy, wide bandwidth, and three-port isolation makes it a reliable choice for professionals in industrial and medical fields.
