Same model may have multiple batches, images only for reference.

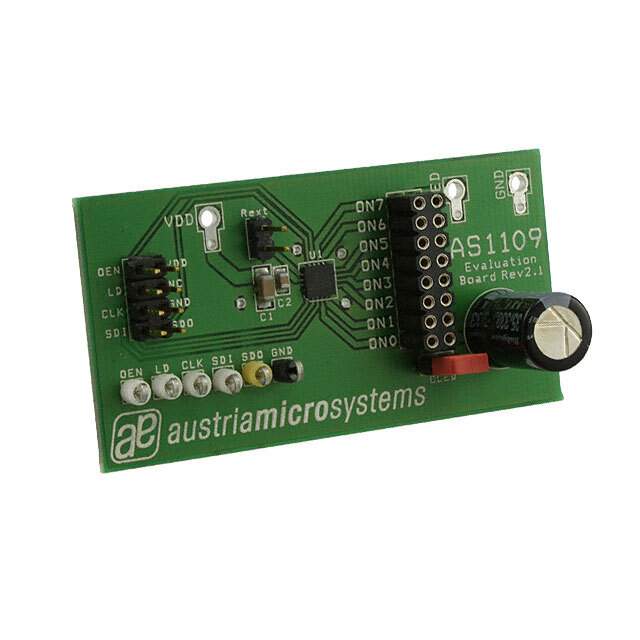

AS1109 EB Real Image
Same model may have multiple batches, images only for reference.

AS1109 EB

Part No AS1109 EB
Manufacturer ams
Catalog Custom Parts (0 - A)
Description Evaluation Board for the AS1109, 8-Channel, 100mA LED Driver with Diagnostic, TQFN (4x4mm) 16-pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Evaluation Kit Yes
Interface SPI
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Number of Outputs 8
Operating Supply Voltage 5.5 V
Output Current 100 mA
Output Current per Channel 100 mA
Output Voltage 15 V
RoHS Compliant
Win Source Part Number 1154831-AS1109 EB
Categories Custom Parts
Manufacturer ams
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AS1109 EB CAD Model

Description

The AS1109 EB from ams is a custom part with 8 outputs and an output current of 100mA per channel.

  • Manufacturer: ams
  • Outputs: 8
  • Output Current: 100mA per channel
  • Interface: SPI
  • Supply Voltage: 5.5V
  • Temperature Range: -40°C to 85°C
  • Description: The device is suitable for use in applications where multiple outputs are required.
