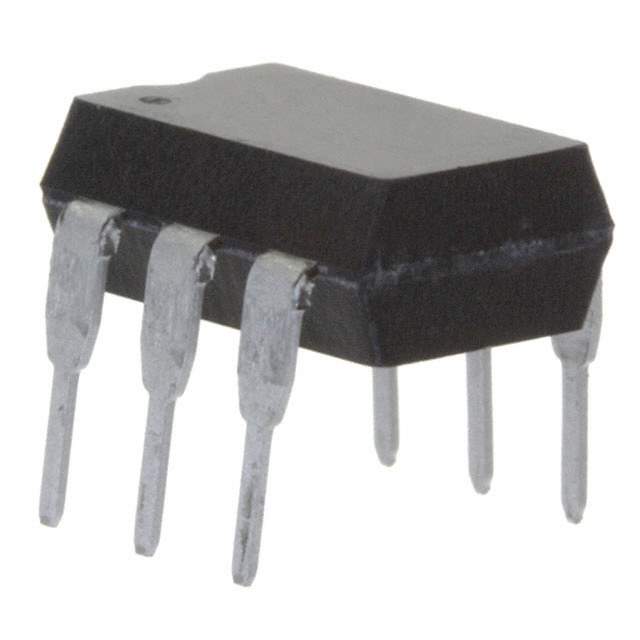

4N25V

Name: 4N25V
Brand: Vishay
SKU: 546156
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	4N25V
Manufacturer	Vishay
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	Optocoupler with Phototransistor Output \| OPTOISO 5KV TRANS W/BASE 6DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Vishay Semiconductor Opto Division
Packaging	Tube
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Minimum)	20% at 10mA
Turn On / Turn Off Time	11μs, 7μs
Rise / Fall Time	7μs, 6.7μs
Input Type	DC
Output Type	Transistor with Base
Maximum Output Voltage	32V
Current - Output / Channel	50mA
Voltage - Forward (Vf)	1.2V
Current - DC Forward (If) (Maximum)	60mA
Vce Saturation (Maximum)	300mV
Temperature Range - Operating	-55°C ~ 100°C
Mounting Style	Through Hole
Manufacturer Package	6-DIP
Supplier Device Package	6-DIP
Family Part Number	4N25
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Win Source Part Number	1128844-4N25V
Manufacturer Homepage	www.vishay.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 4N25V CAD Model

Description

The 4N25V from Vishay Semiconductor Opto Division is a transistor with base output type optocoupler designed for isolators.

Output type: transistor with base
Current - Output / Channel: 50mA
Voltage - Isolation: 5000Vrms
Supplier Device Package: 6-DIP
Mounting Type: Through Hole
Operating Temperature: -55 ~ 100°C
Voltage - Output Max: 32V
Rise / Fall Time (Typ): 7μs, 6.7μs
Turn On / Turn Off Time (Typ): 11μs, 7μs
Voltage - Forward (Vf) (Typ): 1.2V
Current Transfer Ratio (Min): 20% @ 10mA
