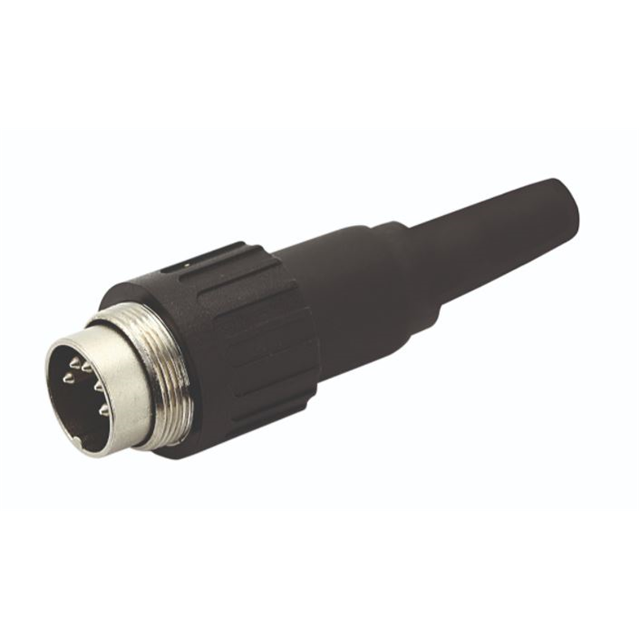

T 3504 013 Real Image
Same model may have multiple batches, images only for reference.

T 3504 013

Part No T 3504 013
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN PLUG MALE 8P SILV SLDR CUP / 8 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
T 3504 013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Tuchel Industrial
Series C091A
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 8
Shell Size - Insert M16-8
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Die Cast
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Ingress Protection IP40
Features Strain Relief
Shielding Shielded
Current Rating (Amps) 7A
Voltage Rating 250V
Temperature Range - Operating -40°C ~ 100°C
Base Product Number T 3504
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names T3504013,T3504013U,T 3504 013-ND
Standard Package 50
Win Source Part Number 985808-T 3504 013
Ultra Librarian 3D Model Ultra Librarian T 3504 013 CAD Model

Description

The 985808-T 3504 013 is a circular connector from the C091A series designed for use in electronic devices. It has 8 positions and a voltage rating of 250V.

  • Series: C091A
  • Positions: 8
  • Voltage Rating: 250V
  • Connector Type: Plug, Male Pins
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Ingress Protection: IP40
  • Shielding: Shielded
  • Orientation: Keyed
  • Packaging: Bulk
  • Standard Package: 50 pieces
  • Shell Size - Insert: M16-8
  • Shell Material: Die Cast
  • Shell Finish: Nickel
  • Current Rating (Amps): 7A
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
  • HTSUS: 8536.69.4020
