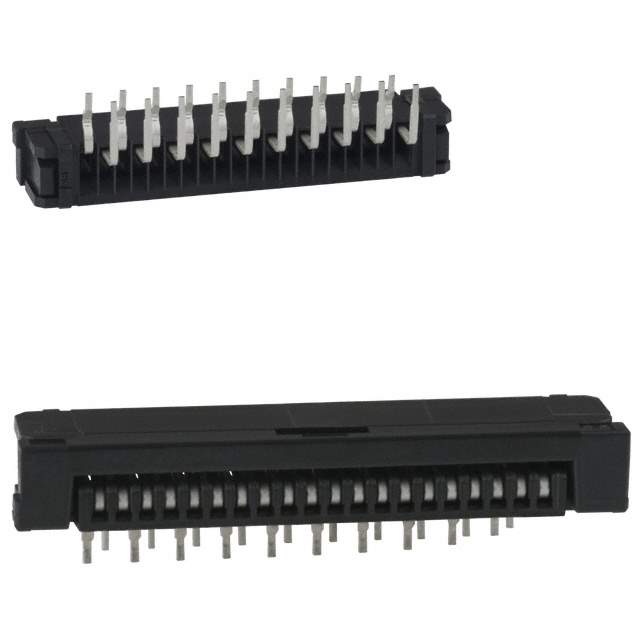

Same model may have multiple batches, images only for reference.

SLW20R-1C7LF

Name: SLW20R-1C7LF
Brand: Amphenol
SKU: 1174085
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLW20R-1C7LF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 20POS 1.00MM R/A / 20 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	SLW-R
Package	Tray
Flat Flex Type	FFC, FPC
Mounting Type	Through Hole, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	20
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.157" (4.00mm)
Locking Feature	Flip Lock
Cable End Type	Notched or Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Polyamide (PA), Nylon, Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	100V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	1A
Housing Color	Black
Actuator Color	Black
Mating Cycles	20
Base Product Number	SLW20
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	2266-SLW20R-1C7LF,SLW20R1C7LF,609-1948
Standard Package	100
Win Source Part Number	1174085-SLW20R-1C7LF
Ultra Librarian 3D Model	Ultra Librarian SLW20R-1C7LF CAD Model

Description

The Amphenol ICC SLW20R-1C7LF is a 20-position FFC/FPC connector that is designed to provide reliable and efficient performance.

Positions: 20
Pitch: 0.039" (1.00mm)
Maximum Current: 1A
Temperature Range: -55°C to 85°C
Mount: Through-hole
Package: Tray
Applications: Telecommunications, automotive, and industrial equipment
