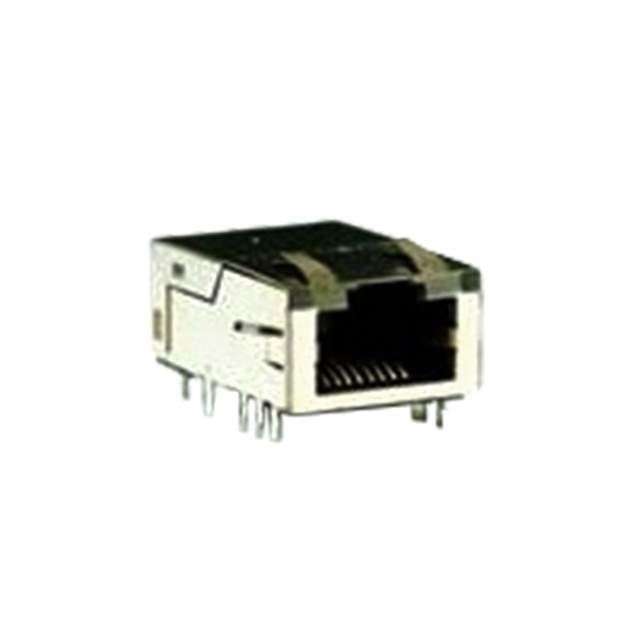

RJMG2012119A0NR

Name: RJMG2012119A0NR
Brand: Amphenol
SKU: 1351473
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RJMG2012119A0NR
Manufacturer	Amphenol
Catalog	Modular Connectors
Description	CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	Amphenol ICC (Commercial Products)
Series	RJMG
Package	Tray
Product Status	Obsolete
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.443" (11.25mm)
LED Color	Green, Yellow - Green
Number of Cores per Jack	8
Shielding	Shielded
Features	Board Guide
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Stainless Steel
Housing Material	Thermoplastic, Polyester
Base Product Number	RJMG2
Standard Package	450
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351473-RJMG2012119A0NR
Ultra Librarian 3D Model	Ultra Librarian RJMG2012119A0NR CAD Model

Alternative Products

Description

The RJMG series modular connector jacks with magnetics are a perfect solution for your electronic components needs.

Connector Type: RJ45
Number of Rows: 1
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Shielded: Yes
Height Above Board: 0.443'' (11.25mm)
Features: Board Guide
Housing Material: Thermoplastic, Polyester
LED Color: Green, Yellow-Green
Number of Cores per Jack: 8
Tab Direction: Up
Operating Temperature: 0°C to 70°C
MSL: 1 (Unlimited)
HTSUS: 8536.69.4040
Manufacturer: Amphenol ICC (Commercial Products)
Product Status: Obsolete
