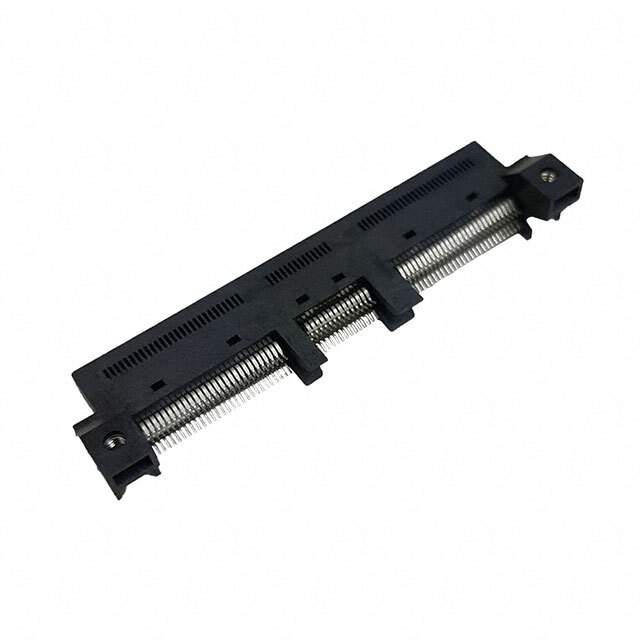

ME1014013401311 Real Image
Same model may have multiple batches, images only for reference.

ME1014013401311

Part No ME1014013401311
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 140P 0.024 / 140 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Amphenol ICC (FCI)
Series Mini Cool Edge 0.60mm
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 28; 14; 28
Number of Positions 140
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.024" (0.60mm)
Read Out Dual
Mounting Type Board Edge, Straddle Mount
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Flange Feature Straddle Mount Opening, Unthreaded, 0.087" (2.20mm)
Temperature Range - Operating -55°C ~ 105°C
Material - Insulation Thermoplastic
Base Product Number ME101
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-ME1014013401311
Standard Package 15
Win Source Part Number 1032200-ME1014013401311
Ultra Librarian 3D Model Ultra Librarian ME1014013401311 CAD Model

Description

The Mini Cool Edge 0.60mm card edge connector is a high-quality electronic component produced by Amphenol ICC (FCI).

  • Positions: 140
  • Pitch: 0.024" (0.60mm)
  • Contact Type: Cantilever
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Card Thickness: 0.062" (1.57mm)
  • Temperature Range: -55°C to 105°C
  • Package: Tray
