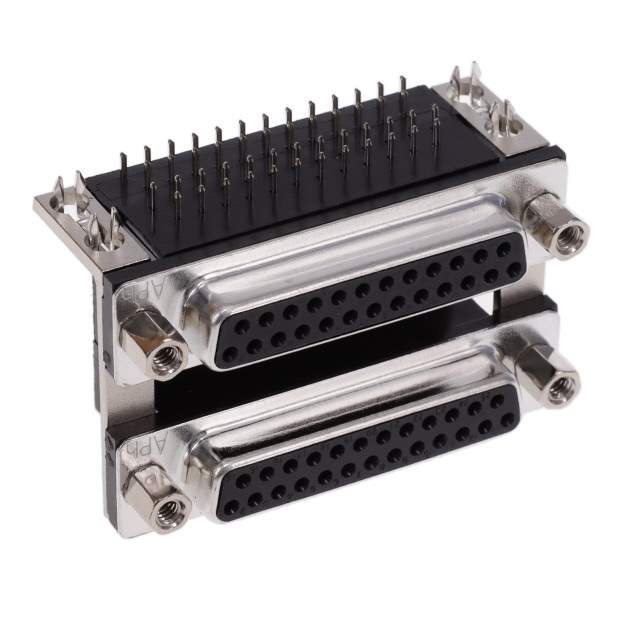

Same model may have multiple batches, images only for reference.

L17H2660131

Name: L17H2660131
Brand: Amphenol
SKU: 1061552
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	L17H2660131
Manufacturer	Amphenol
Catalog	D - Sub Connectors
Description	CONN D-SUB RCPT 25POS R/A SLDR / 25, 25 Position D-Sub - Stacked Receptacle, Female Sockets Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	Amphenol ICC (Commercial Products)
Series	17H
Package	Tray
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Number of Positions	25, 25
Number of Rows	2, 2
Mounting Type	Through Hole, Right Angle
Shell Size, Connector Layout	3 (DB, B); 3 (DB, B)
Contact Type	Signal
Flange Feature	Mating Side, Female Screwlock (4-40)
Termination	Solder
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	3A
Backset Spacing	0.318" (8.08mm)
Features	Board Lock, Shielded
Voltage Rating	250V
Color	Black
Contact Form	Stamped
Dielectric Material	Thermoplastic, Glass Filled
Contact Material	Brass
Temperature Range - Operating	-55°C ~ 105°C
Base Product Number	L17H26
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	25
Win Source Part Number	1061552-L17H2660131
Ultra Librarian 3D Model	Ultra Librarian L17H2660131 CAD Model

Description

The L17H2660131 is a D-sub connector from Amphenol ICC (Commercial Products) that has 25 positions.

Positions: 25
Connector Type: Receptacle
Socket Gender: Female
Shielded: Yes
Board Lock: Yes
Contact Finish: Gold
Contact Material: Brass
Voltage Rating: 250V
Current Rating: 3A
Mounting Type: Through Hole
Mounting Orientation: Right Angle
Temperature Range: -55°C ~ 105°C
MSL Level: 1 (Unlimited)
Alternative Parts: 747844-4, 2-5747706-0, 5747150-8, 09661516513, 09662516512, 09661526616
