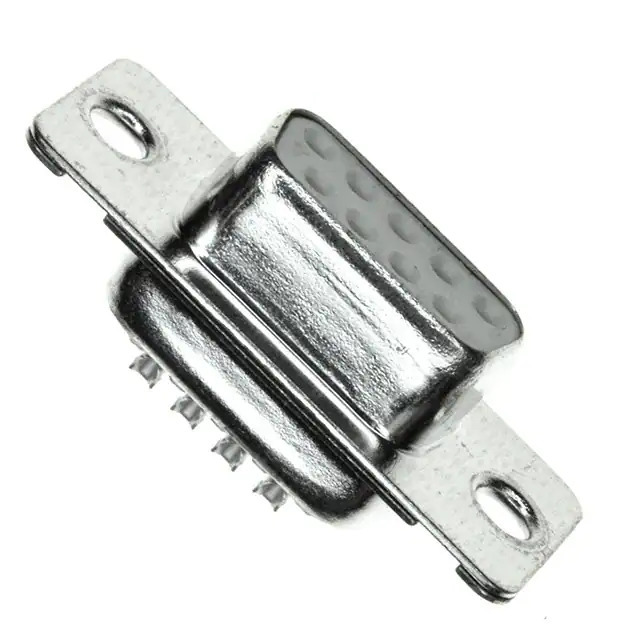

DE09S064TLF Amphenol
Same model may have multiple batches, images only for reference.

DE09S064TLF

Part No DE09S064TLF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS SLDR CUP / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (FCI)
Series D
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing -
Features -
Voltage Rating 300V
Color Natural
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DE09S064
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365116-DE09S064TLF
Ultra Librarian 3D Model Ultra Librarian DE09S064TLF CAD Model

Description

The Amphenol ICC (FCI) D DE09S064 series is a free hanging (in-line) D-Sub connector assembly manufactured by Amphenol ICC (FCI).

  • Shell Size: 1 (DE, E)
  • Connector Type: Receptacle with female socket contacts
  • Positions: 9
  • Rows: 2
  • Current Rating: 5A per contact
  • Contact Finish: Gold with flash thickness
  • Color: Natural
  • Voltage Rating: 300V
  • Shell Material: Steel with tin plated finish
