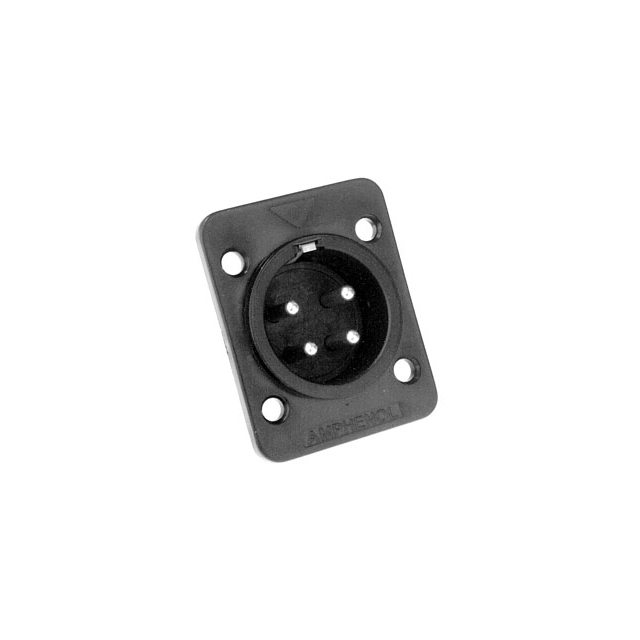

Same model may have multiple batches, images only for reference.

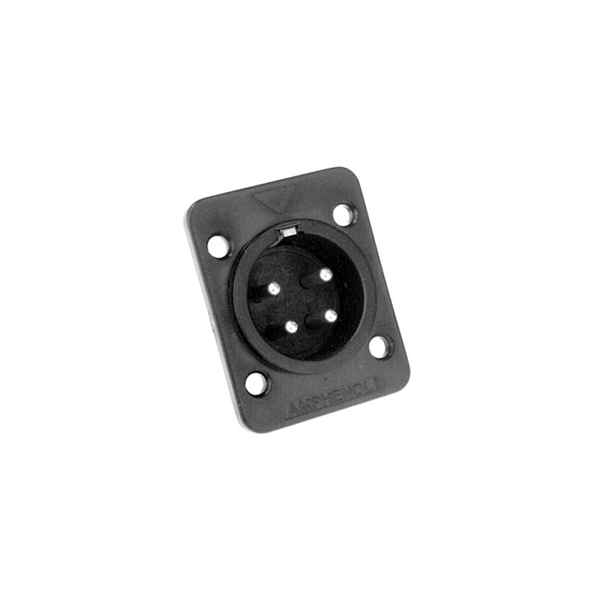

AP-6-22 Real Image
Same model may have multiple batches, images only for reference.

AP-6-22

Part No AP-6-22
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN RCPT MALE 6P TIN SOLDER CUP / 6 Position Circular Connector Receptacle, Male Pins Solder Cup
Datasheet
AP-6-22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Audio
Series AP
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 6
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Latch Holder
Orientation Keyed
Primary Material Plastic
Shell Material Polyphenylene Ether (PPE), Modified
Shell Finish Black
Contact Finish - Mating Tin
Color Black
Ingress Protection IP40
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 20A
Temperature Range - Operating -25°C ~ 75°C
Contact Material Brass
Insert Material Polybutylene Terephthalate (PBT)
Applications Audio
Base Product Number AP-6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 889-AP-6-22
Standard Package 10
Win Source Part Number 985471-AP-6-22
Ultra Librarian 3D Model Ultra Librarian AP-6-22 CAD Model

Description

This AP connector is a circular connector with six positions and is designed for receptacle and male pins gender.

  • Contact Material: brass
  • Contact Finish for Mating: tin
  • Flammability Rating: UL94 V-0
  • Current Rating: 20A
  • Mounting: flange
  • Temperature Range: -25°C to 75°C
  • Shell Material: polyphenylene ether (PPE)
  • Insert Material: polybutylene terephthalate (PBT)
  • Ingress Protection Rating: IP40
