Same model may have multiple batches, images only for reference.

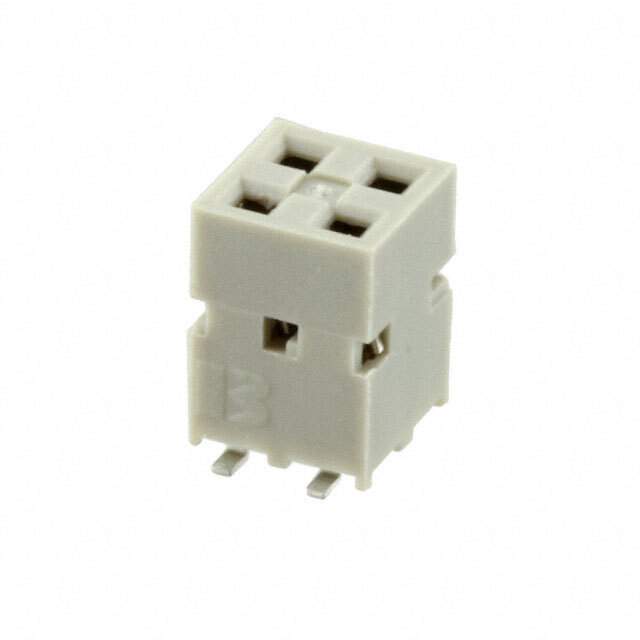

89898-302ALF Real Image
Same model may have multiple batches, images only for reference.

89898-302ALF

Part No 89898-302ALF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.1 GOLD SMD / 4 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Tape & Reel
Connector Type Receptacle, Bottom or Top Entry
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Gray
Insulation Height 0.275" (6.99mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 10.81mm
Features Pick and Place
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 89898
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 89898-302ALF-ND,2266-899170S004TR,609-5153-2,2266-89898-302ALFTR
Standard Package 650
Win Source Part Number 964289-89898-302ALF
Ultra Librarian 3D Model Ultra Librarian 89898-302ALF CAD Model

Description

The Amphenol ICC (FCI) Dubox™ 964289-89898-302ALF connector is a rectangular receptacle connector with a total of 4 positions. Amphenol ICC (FCI) Dubox™ 964289-89898-302ALF.

  • Positions: 4
  • Termination: Solder
  • Fastening Type: Push-pull
  • Contact Finish - Mating: Gold
  • Insulation Material: Thermoplastic, Glass-Filled
  • Insulation Color: Gray
  • Style: Board to Board
  • Pitch: 0.100" (2.54mm)
  • Mated Stacking Height: 10.81mm
  • Package: Tape & Reel
  • REACH: Affected
