Same model may have multiple batches, images only for reference.

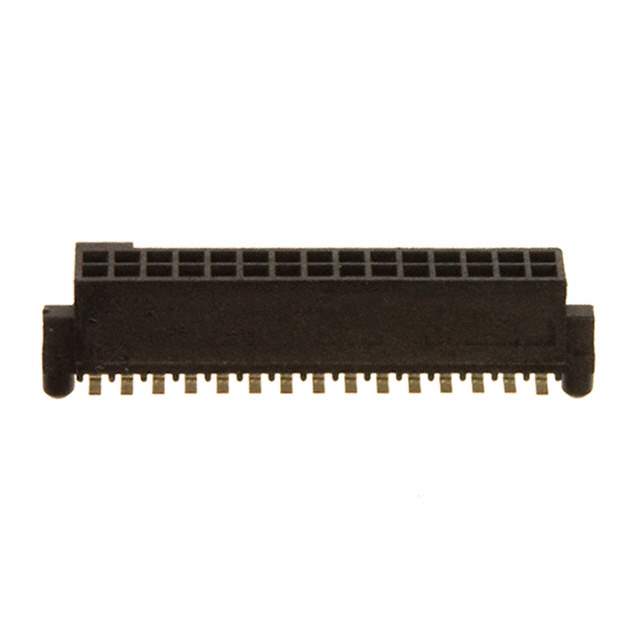

87024-615LF Real Image
Same model may have multiple batches, images only for reference.

87024-615LF

Part No 87024-615LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 30POS 0.05 GOLD SMD / 30 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold or Gold, GXT™
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Rib-Cage™
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Natural
Insulation Height 0.187" (4.75mm)
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide
Applications General Purpose, Industrial, Telecommunications
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number 87024
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 87024615LF,2266-87024-615LF,609-1551
Standard Package 27
Win Source Part Number 997381-87024-615LF
Ultra Librarian 3D Model Ultra Librarian 87024-615LF CAD Model

Description

The 997381-87024-615LF is a rectangular connector manufactured by Amphenol ICC (FCI). Amphenol ICC (FCI).

  • Series: Rib-Cage™
  • Positions: 30
  • Board Guide: Yes
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Tube
  • Contact Material: Beryllium Copper
  • Applications: General Purpose, Industrial, Telecommunications
  • Mounting: SMD (SMT)
  • Pitch: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold or Gold, GXT™
  • Contact Finish Thickness-Mating: 30.0μin (0.76μm)
  • Contact Finish-Post: Tin
  • Insulation Color: Natural
  • REACH Affected: Yes
  • HTSUS: 8536.69.4040
  • Standard Package: 27
  • Insulation Material: Thermoplastic, Glass Filled
  • Row Spacing-Mating: 0.050" (1.27mm)
  • Insulation Height: 0.187" (4.75mm)
  • Contact Shape: Square
