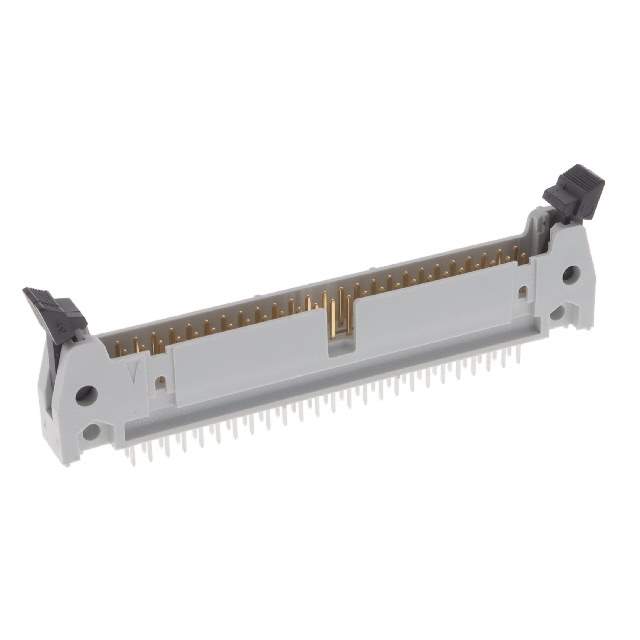

Part No 86130502214345E1LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.171" (4.35mm)
Overall Contact Length 0.713" (18.10mm)
Insulation Height 0.693" (17.60mm)
Contact Shape Circular
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Voltage Rating 250V
Base Product Number 86130502
Standard Package 42
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338309-86130502214345E1LF
Ultra Librarian 3D Model Ultra Librarian 86130502214345E1LF CAD Model

Description

The Amphenol Quickie™ header male pins are connectors with a keying slot feature.

  • Series: Quickie™
  • Connector Type: Header
  • Contact Type: Male Pin
  • Number of Rows: Two
  • Positions Loaded: All
  • Termination: Solder
  • Shrouded: 4 Walls
  • Mounting Type: Through-Hole
  • Contact Finish-Mating: Gold or Gold-Palladium
  • Contact Finish-Post: Tin
  • Pitch-Mating: 0.100" (2.54mm)
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Insulation Color: Gray
  • Contact Shape: Circular
  • Contact Length-Mating: 0.240" (6.10mm)
  • Overall Contact Length: 0.713" (18.10mm)
  • Insulation Height: 0.693" (17.60mm)
  • Operating Temperature: -55°C to 125°C
