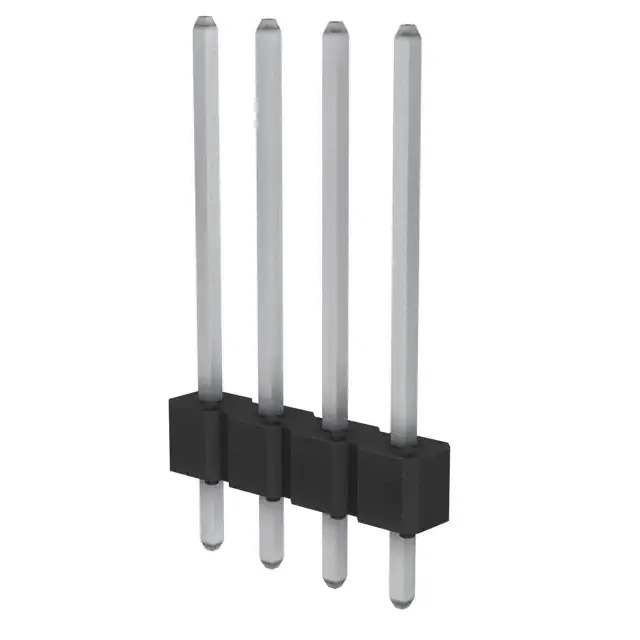

77311-462K04LF Amphenol
Same model may have multiple batches, images only for reference.

77311-462K04LF

Part No 77311-462K04LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM / Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Tape & Reel (TR)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.531" (13.50mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.752" (19.09mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -65°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications -
Base Product Number 77311
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366019-77311-462K04LF
Ultra Librarian 3D Model Ultra Librarian 77311-462K04LF CAD Model

Description

The Amphenol ICC (FCI) BERGSTIK® series is a board-to-board header connector with male pins.

  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 4
  • Number of Rows: 1
  • Shrouding: Unshrouded
  • Termination: Solder
  • Current Rating: 3A per contact
  • Mounting Type: Through Hole
  • Contact Length Mating: 0.531" (13.50mm)
  • Contact Length Post: 0.120" (3.05mm)
  • Contact Length Overall: 0.752" (19.09mm)
  • Contact Finish: Tin, 78.7µin (2.00µm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • REACH: Compliant
  • ECCN: EAR99
