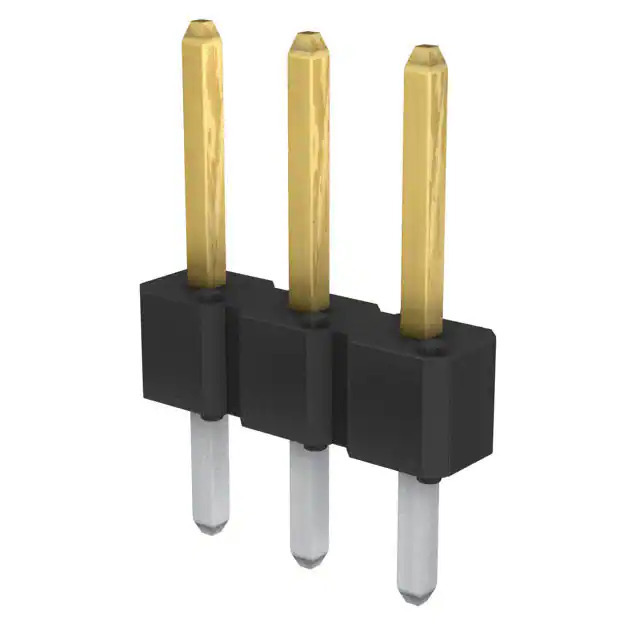

77311-102-03LF Amphenol
Same model may have multiple batches, images only for reference.

77311-102-03LF

Part No 77311-102-03LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series BERGSTIK®
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.135" (3.43mm)
Overall Contact Length 0.465" (11.81mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Features -
Temperature Range - Operating -65°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A per Contact
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications -
Base Product Number 77311
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1366029-77311-102-03LF
Ultra Librarian 3D Model Ultra Librarian 77311-102-03LF CAD Model

Description

The 1366029-77311-102-03LF is a male pin header connector from Amphenol ICC (FCI).

  • Series: BERGSTIK®
  • Mounting Type: Through Hole
  • Current Rating (Per Contact): 3A
  • Pitch: 0.100" (2.54mm)
  • Number of Positions: 3
  • Number of Rows: 1
  • Shrouding: Unshrouded
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Finish: Gold or Gold, GXT™
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
