76385-306LF

Name: 76385-306LF
Brand: Amphenol
SKU: 1006688
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	76385-306LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors

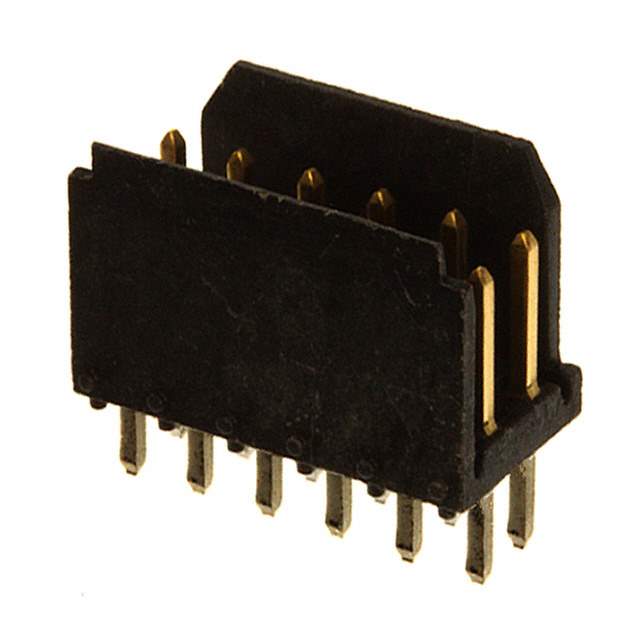

Description	CONN HEADER VERT 12POS 2.54MM / Connector Header Through Hole 12 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	Dubox™
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 2 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.197" (5.00mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.411" (10.44mm)
Insulation Height	0.368" (9.35mm)
Contact Shape	Square
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled
Temperature Range - Operating	-40°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	76385
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2266-76385-306LF,76385306LF,609-1334
Standard Package	500
Win Source Part Number	1006688-76385-306LF
Ultra Librarian 3D Model	Ultra Librarian 76385-306LF CAD Model

Description

This electronic component is a connector from the Dubox™ series manufactured by Amphenol ICC (FCI).

Connector Type: header
Contact Type: male pins
Positions Loaded: 12
Rows: two
Termination: soldering
Shrouding: shrouded with 2 walls
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: gold GXT™
Thickness (Mating): 30.0µin (0.76µm)
Contact Finish-Post: tin
Thickness (Post): 78.7µin (2.00µm)
Temperature Range: -40°C to 125°C
Current Rating: 3A
Color: black
Insulation Height: 0.368" (9.35mm)
