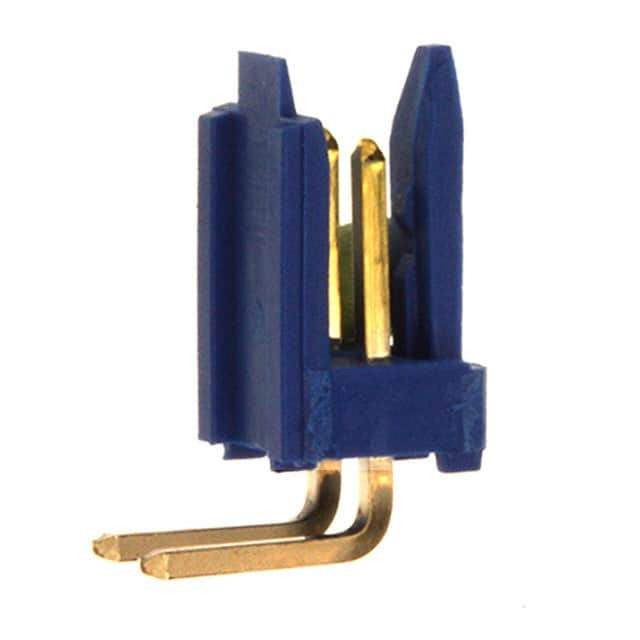

76382-302LF Real Image
Same model may have multiple batches, images only for reference.

76382-302LF

Part No 76382-302LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 2.54MM / Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol
Series Dubox™
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.197" (5.00mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.209" (5.30mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Current Rating (Amps) 3A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 76382
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 850320-76382-302LF
Ultra Librarian 3D Model Ultra Librarian 76382-302LF CAD Model

Description

The Amphenol electronic component with the Win Source Part Number 850320-76382-302LF is a rectangular connector header with male pins.

  • Series: Dubox™
  • Positions: 2
  • Connector Type: Header with Male Pin Contacts
  • Termination: Solder
  • Fastening Type: Friction Lock
  • Package: Bulk
  • Standard Package: 500 pieces
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 30.0µin (0.76µm)
  • Contact Finish (Post): Tin
  • Contact Finish Thickness (Post): 78.7µin (2.00µm)
  • Insulation Color: Blue
  • Mounting Type: Through-Hole, Right-Angle
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 3A
  • REACH: Affected
  • MSL Level: 1 (unlimited)
  • Manufacturer: Amphenol
  • Product Status: Active
