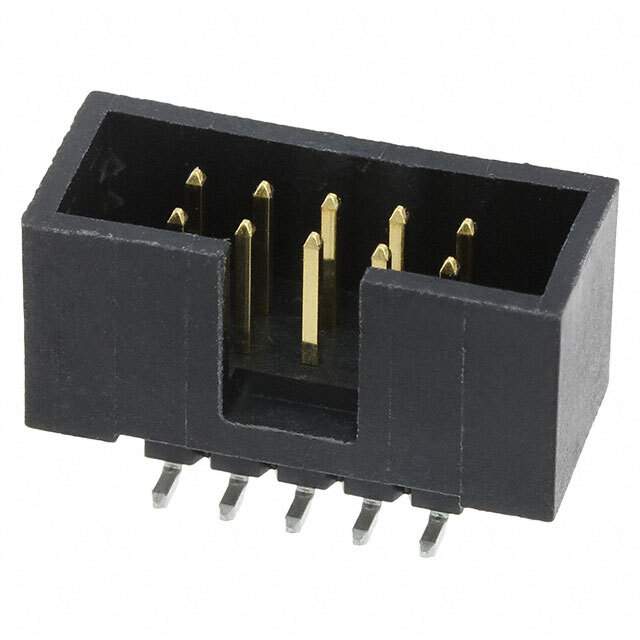

72454-010VLF Real Image
Same model may have multiple batches, images only for reference.

72454-010VLF

Part No 72454-010VLF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 2.54MM / Connector Header Surface Mount 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.365" (9.27mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Features Keying Slot, Pick and Place
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 72454
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-72454-010VLF,609-4945-6,72454-010VLF-NDL,Q4292024,609-4945-2,72454-010VLF-ND,609-4945-1
Standard Package 200
Win Source Part Number 1010828-72454-010VLF
Ultra Librarian 3D Model Ultra Librarian 72454-010VLF CAD Model

Description

The Amphenol ICC (FCI) Quickie™ 72454-010VLF is a rectangular connector header with male pins.

  • Manufacturer: Amphenol ICC (FCI)
  • Series: Quickie™
  • Connector Type: Header
  • Contact Gender: Male Pins
  • Pitch - Mating: 0.100" (2.54mm)
  • Shrouding: 4 Walls
  • Supply and Demand Status: Limited
  • Package: Tape & Reel
  • Standard Package: 200
  • Current Rating: 1A
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Affected
  • HTSUS: 8536.69.4040
