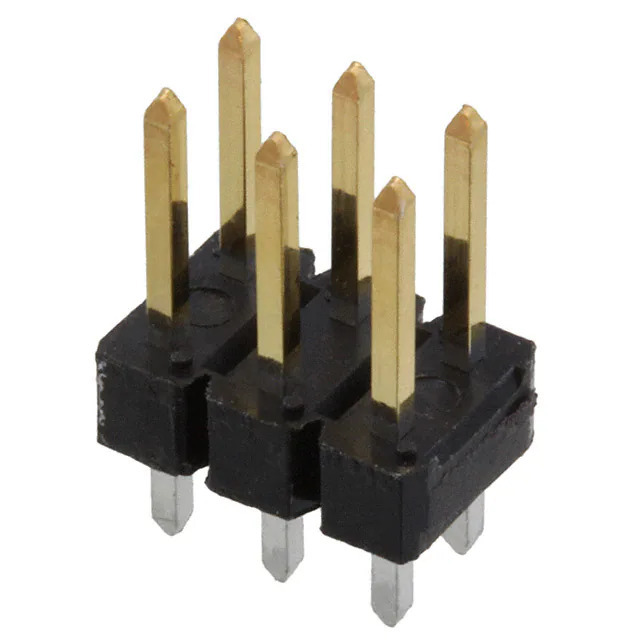

Same model may have multiple batches, images only for reference.

67996-206HLF

Name: 67996-206HLF
Brand: Amphenol
SKU: 1366057
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	67996-206HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	-
Contact Material	Phosphor Bronze
Insulation Material	-
Features	-
Temperature Range - Operating	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	67996
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366057-67996-206HLF
Ultra Librarian 3D Model	Ultra Librarian 67996-206HLF CAD Model

Alternative Products

Description

The 1366057-67996-206HLF is a header connector from the BERGSTIK® II series manufactured by Amphenol ICC (FCI).

Series: BERGSTIK® II
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Fastening Type: Push-Pull
Current Rating: 3A per Contact
Contact Shape: Square
Contact Finish: Gold or Gold with GXT™ plating
Shrouding: Unshrouded
Positions: 6
Rows: 2
RoHS Compliant: Yes
REACH Compliant: Unaffected
Operating Temperature: -65°C to 125°C
