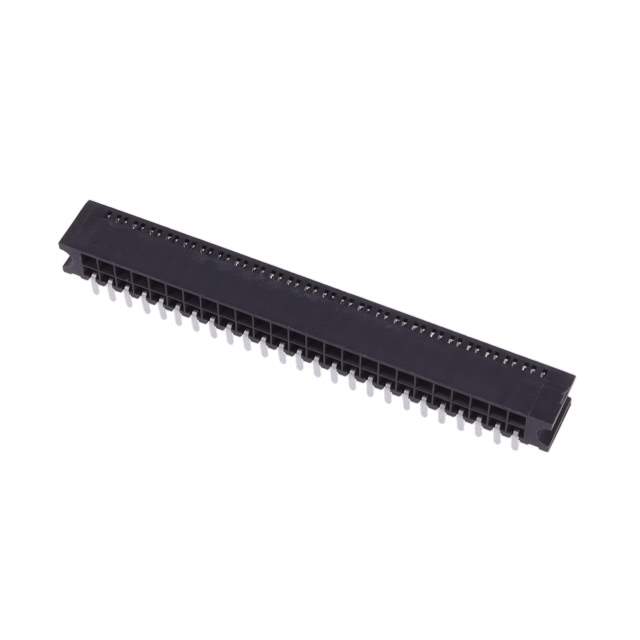

66527-025LF Real Image
Same model may have multiple batches, images only for reference.

66527-025LF

Part No 66527-025LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 50POS 0.1 GOLD PCB R/A / 50 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Dubox™
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.240" (6.10mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 1250V
Applications Automotive, General Purpose, Industrial, Telecommunications
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Contact Material Brass
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 66527
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 66527-025LF-ND,609-66527-025LF
Standard Package 8
Win Source Part Number 1039716-66527-025LF
Ultra Librarian 3D Model Ultra Librarian 66527-025LF CAD Model

Description

The Dubox™ series electronic component from Amphenol ICC (FCI) manufacturer is a rectangular connector with a receptacle type connector.

  • Connector Type: Rectangular Connector
  • Receptacle Type: Receptacle
  • Positions Loaded: 50, All Two Rows
  • Voltage Rating: 1250V
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Contact Finish of Mating: Gold
  • Contact Finish of Post: Tin
  • Contact Finish Thickness of Mating: 30.0µin (0.76µm)
  • Contact Finish Thickness of Post: 100.0µin (2.54µm)
  • Temperature Range: -65°C to 125°C
  • Applications: Automotive, General Purpose, Industrial, and Telecommunications
