Same model may have multiple batches, images only for reference.

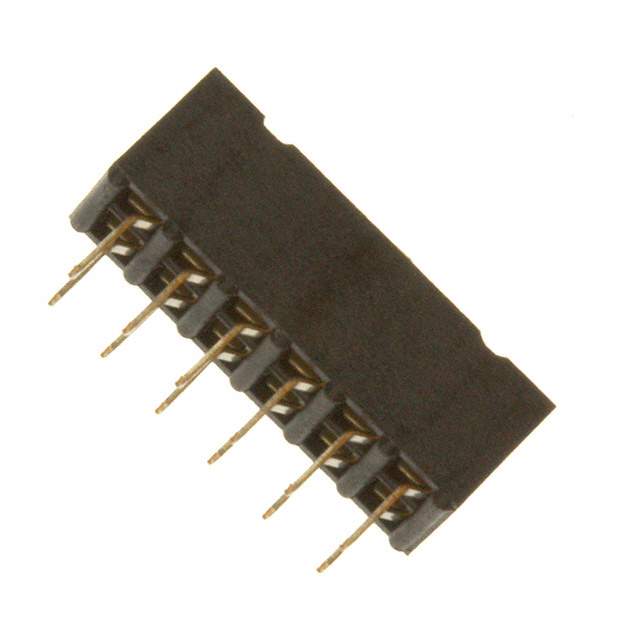

63453-112LF Real Image
Same model may have multiple batches, images only for reference.

63453-112LF

Part No 63453-112LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.079 GOLD PCB / 12 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer Amphenol ICC (FCI)
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Contact Length - Post 0.098" (2.50mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Voltage Rating 200V
Applications General Purpose, Industrial, Medical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 60.0µin (1.52µm)
Base Product Number 63453
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-2658,63453112LF
Standard Package 45
Win Source Part Number 1332831-63453-112LF
Ultra Librarian 3D Model Ultra Librarian 63453-112LF CAD Model

Description

This is a 12 position connector receptacle with female sockets.

  • Positions: 12
  • Connector Type: Receptacle
  • Contact Type: Female Sockets
  • Packaging: Tube
  • Mounting: Through Hole
  • Pitch: 0.079" (2.00mm)
  • Voltage Rating: 200V
  • Current Rating: 2A
  • Contact Finish Mating: Gold
  • Contact Finish Post: Tin
  • Thickness Mating: 30.0µin (0.76µm)
  • Thickness Post: 60.0µin (1.52µm)
  • Insulation Material: Polycyclohexylenedimethylene terephthalate (PCT), glass filled
  • Insulation Color: Black
  • ECCN: EAR99
  • REACH: Affected
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: 609-2658 and 63453112LF
  • Base Product Number: 63453
  • RoHS Compliant: Yes
