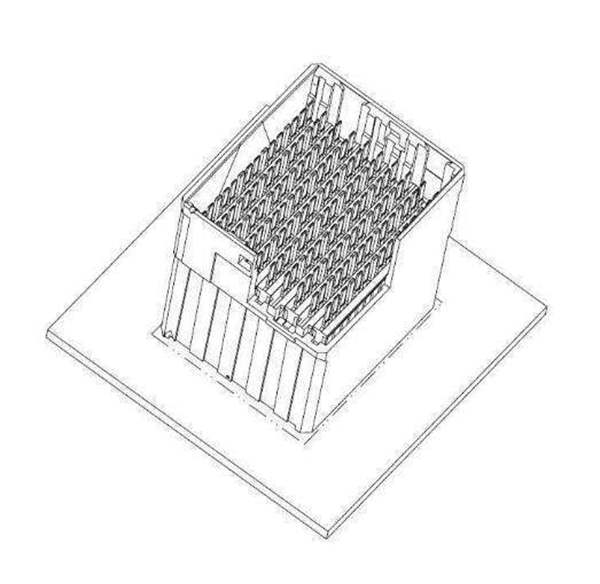

10056246-1070LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10056246-1070LF

Part No 10056246-1070LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HDR HIGH SPEED 150POS PCB
Datasheet
10056246-1070LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324239-10056246-1070LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Backplane Connectors > Specialized
Packaging Bulk
Part Status Active
Connector Type Header, Male Pins
Number of Positions 150
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 15
Number of Columns 10
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 50 Differential Pairs, 50 Ground
Ultra Librarian 3D Model Ultra Librarian 10056246-1070LF CAD Model

Description

150 Connector Header, Male Pins Through Hole Natural High Speed
