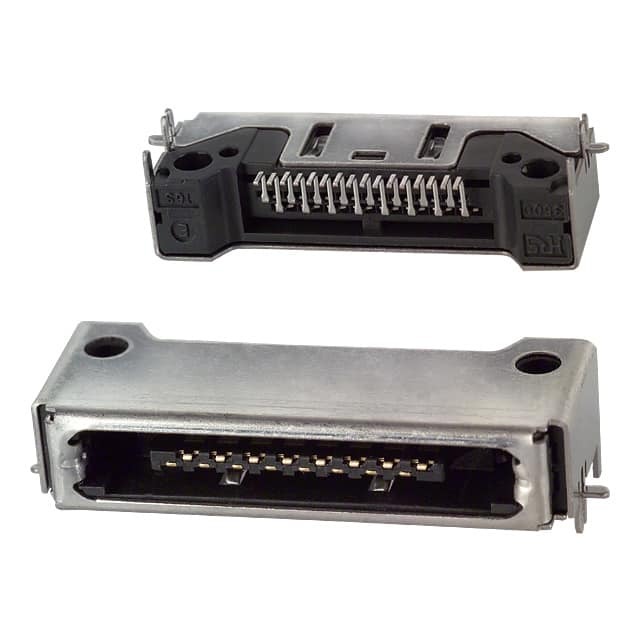

Part No 3560-16SR(50)
Manufacturer Hirose Electric Co Ltd
Catalog Pluggable Connectors
Description CONN MULTI-PURP RCPT 16P R/A SMD
Datasheet
3560-16SR(50) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Hirose Electric Co Ltd
Series 3500
Package Tray
Product Status Obsolete
Connector Style Receptacle
Connector Type Multi-Purpose
Number of Positions 16
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 855793-3560-16SR(50)
Ultra Librarian 3D Model Ultra Librarian 3560-16SR(50) CAD Model

Description

The 3500 series is a 16-position pluggable connector assembly designed for applications in the field of connectors and interconnects.

  • Series: 3500
  • Category: Connectors, Interconnects
  • Positions: 16
  • Features: Board Lock
  • Connector Type: Receptacle
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Mounting: Surface Mount, Right Angle
  • Standard Package: 100 pcs
  • Product Status: Obsolete
