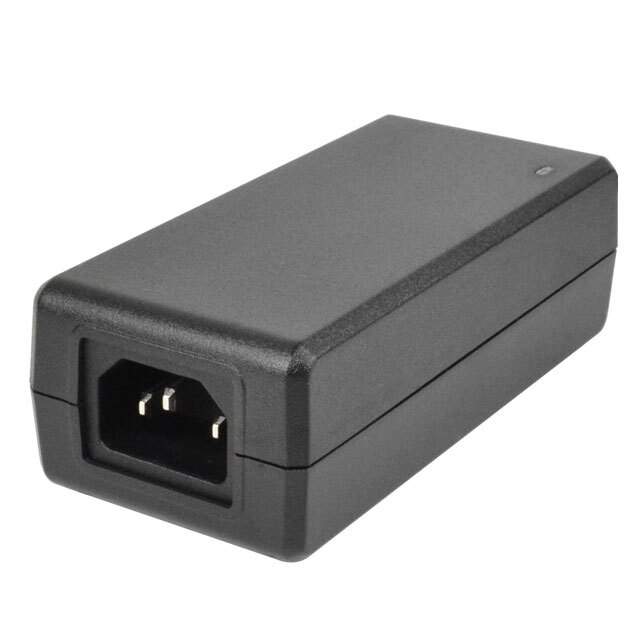

The SDI50-U (50W) is a power supply designed for ITE (Commercial) applications.

• Application: ITE (Commercial)
• Input Voltage: 90 ~ 264 VAC
• Polarization: Positive Center
• Output Voltage: 24V
• Output Current: 2.1A (Max)
• Package: Box
• Weight: 0.684 lb (310.26 g)
• Efficiency: Level VI, CoC Tier 2
• No-Load Power Consumption: 150mW (Max)
• Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Input Connector: IEC 320-C14
• Cord Length: 59" (1.50m)
• Operating Temperature: 0°C ~ 40°C
• Dimensions: 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm)
• Approvals: CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL
• Standards: C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
