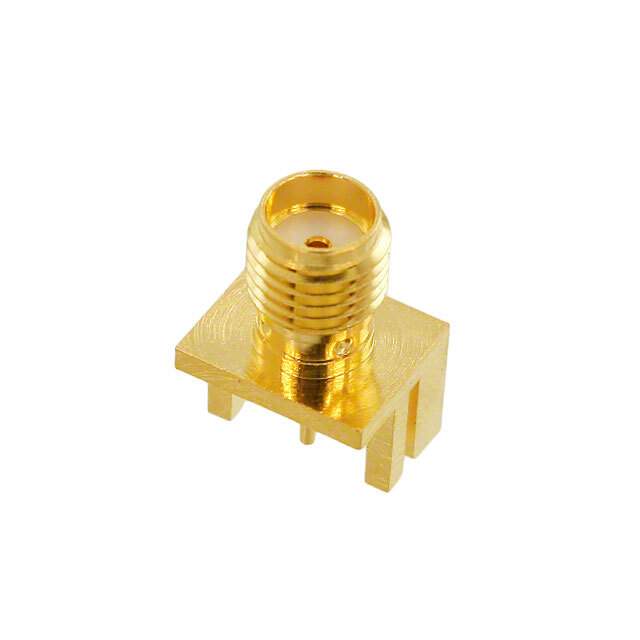

132432 Real Image
Same model may have multiple batches, images only for reference.

132432

Part No 132432
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA RCPT STR 50OHM EDGE MNT / SMA Connector Receptacle, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
132432 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bag
Product Status Active
Connector Style SMA
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Frequency - Max 18 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 1324
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 853941-132432
Ultra Librarian 3D Model Ultra Librarian 132432 CAD Model

Description

The 853941-132432 is a SMA female socket receptacle coaxial connector assembly from Amphenol-RF Division.

  • Fastening Type: Threaded
  • Frequency Range: Up to 18 GHz
  • Housing Color: Gold
  • Impedance: 50Ohm
  • Material: Brass
  • Body Finish: Gold
  • Mating Cycle: 500
  • Temperature Range: -65°C to 165°C
  • Product Status: Active
  • REACH Compliance: Yes
