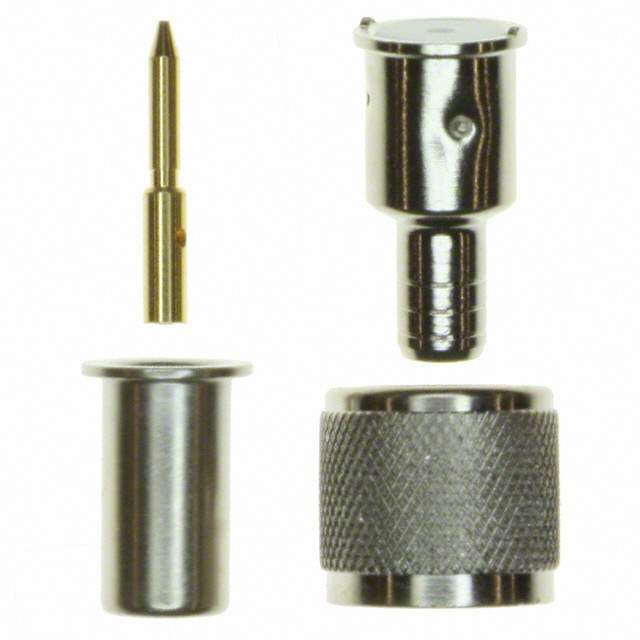

081-115N-1000 Real Image
Same model may have multiple batches, images only for reference.

081-115N-1000

Part No 081-115N-1000
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description connector, rf coaxial, mini-uhf str plug, hollow contact, crimp-crimp, for rg58 cable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Brass
Body Plating Nickel
Connector Type Coaxial, Crimp, Male Pin, Plug
Contact Material Brass
Contact Plating Gold
Dielectric Material PTFE
Fastening Type Threaded
Frequency 2.5 Hz
Gender Male
Height 6.35 mm
Housing Color Silver
Impedance 50 Ω
Lead Free Lead Free
Length 114.3 mm
Max Frequency 2.5 GHz
Max Operating Temperature 85 °C
Min Operating Temperature -55 °C
Mount Cable, Free Hanging
Orientation Straight
Packaging Bulk
Plating Nickel
Polarity Standard
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Voltage Rating 335 V
Weight 28.349523 g
Width 82.55 mm
Win Source Part Number 1167981-081-115N-1000
Categories Coaxial Connectors(RF)
Manufacturer Amphenol-RF Division
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 081-115N-1000 CAD Model

Description

The Amphenol-RF Division 1167981-081-115N-1000 is a coaxial, crimp, male pin, plug connector that is designed to provide reliable and high-performance connections.

  • Type: Coaxial, Crimp, Male Pin, Plug
  • Fastening Type: Threaded
  • Contact Material: Brass
  • Voltage Rating: 335 V
  • Impedance: 50 Ω
  • Length: 114.3 mm
  • Orientation: Straight
  • Contact Plating: Gold
  • Housing Color: Silver
  • Body Material: Brass
  • Body Plating: Nickel
  • Frequency Range: 2.5 Hz
  • Lead-Free: Yes
  • Mounting: Cable/Free Hanging
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -55 °C
  • Maximum Operating Temperature: 85 °C
