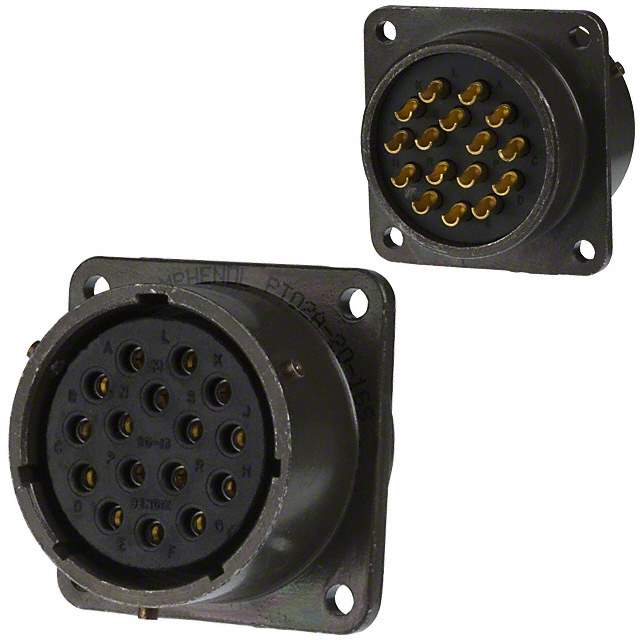

PT02A-20-16S(025) Real Image
Same model may have multiple batches, images only for reference.

PT02A-20-16S(025)

Part No PT02A-20-16S(025)
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN RCPT FMALE 16P SOLDER CUP / 16 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series MIL-DTL-26482 Series I, PT
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 16
Shell Size - Insert 20-16
Mounting Type Panel Mount
Mounting Feature Flange
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Black Zinc Cobalt
Contact Finish - Mating Gold
Color Black
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Backshell Material, Plating Aluminum, Black Zinc Cobalt
Contact Material Copper Alloy
Insert Material Neoprene
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Base Product Number PT02A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names PT02A2016S025,PT02A2016S(025),C93-146220-16S,93-146220-16S,9314622016S,PT02A20-16S(025)
Standard Package 1
Win Source Part Number 1086222-PT02A-20-16S(025)
Ultra Librarian 3D Model Ultra Librarian PT02A-20-16S(025) CAD Model

Description

The PT02A-20-16S(025) is a circular connector electronic component that falls under the MIL-DTL-26482 Series I, PT series. PT02A-20-16S(025) is a circular connector electronic component that falls under the MIL-DTL-26482 Series I, PT series. Amphenol Industrial Operations manufactures it.

  • Positions: 16
  • Color: Black
  • Connector Type: Receptacle, Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Contact Finish: Gold
  • Cable Opening: -
  • Mounting Type: Panel Mount
  • Temperature Range: -55°C to 125°C
  • Shell Material: Aluminum
  • Shell Finish: Black Zinc Cobalt
  • Insert Material: Neoprene
  • HTSUS: 8536.69.4020
