Same model may have multiple batches, images only for reference.

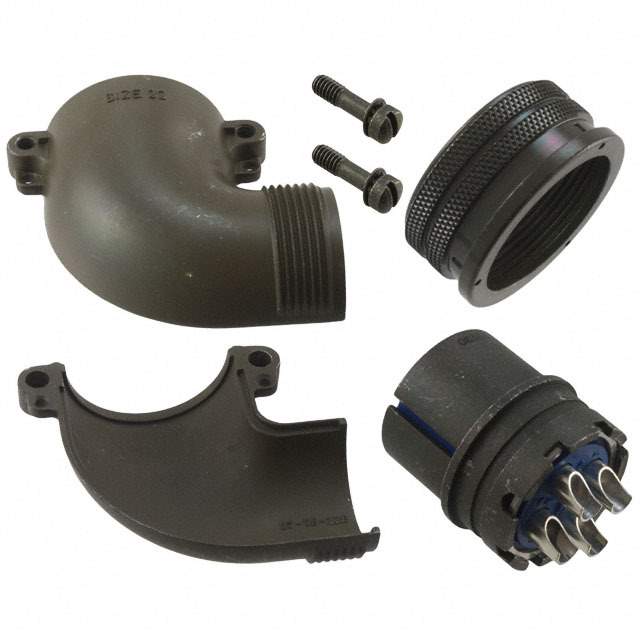

97-3108B-22-22S Real Image
Same model may have multiple batches, images only for reference.

97-3108B-22-22S

Part No 97-3108B-22-22S
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors
Description CONN PLUG FMALE 4P SOLDER CUP / 4 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
97-3108B-22-22S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Industrial Operations
Series 97
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 4
Shell Size - Insert 22-22
Mounting Type Free Hanging (In-Line), Right Angle
Termination Solder Cup
Fastening Type Threaded
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Olive Drab Chromate over Cadmium
Contact Finish - Mating Silver
Color Olive Drab
Features Coupling Nut, Rotatable
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Contact Material Copper Alloy
Insert Material Diallyl Phthalate (DAP)
Applications Automotive, Industrial
Base Product Number 97-3108B22
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Other Names U10-820172-22S,973108B2222S
Standard Package 1
Win Source Part Number 1041505-97-3108B-22-22S
Ultra Librarian 3D Model Ultra Librarian 97-3108B-22-22S CAD Model

Description

The Amphenol Industrial Operations electronic component is a circular connector with a Win Source Part Number of 1041505-97-3108B-22-22S. It is a 97 series with 4 positions and an olive drab color.

  • Product Name: Circular Connector
  • Manufacturer: Amphenol Industrial Operations
  • Win Source Part Number: 1041505-97-3108B-22-22S
  • Series: 97
  • Positions: 4
  • Color: Olive Drab
  • Features: Coupling Nut and Rotatable Capability
  • Type: Plug with Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Packaging: Bulk
  • Contact Material: Copper Alloy
  • Operating Temperature Range: -55°C to 125°C
  • Shell Material: Aluminum Alloy
  • Shell Finish: Olive Drab Chromate over Cadmium
  • Insert Material: Diallyl Phthalate (DAP)
