Same model may have multiple batches, images only for reference.

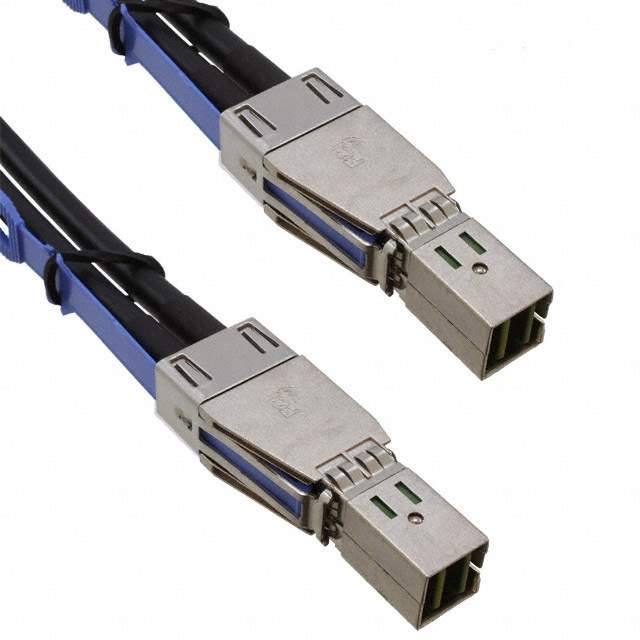

10117949-2020LF Real Image
Same model may have multiple batches, images only for reference.

10117949-2020LF

Part No 10117949-2020LF
Manufacturer Amphenol FCI
Catalog Pluggable Cables
Description CABLE MINISAS HD 4X M-M 2M
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Cable Connectors miniSAS HD 4x
Number of Positions 36
Connector Type Plug to Plug
Gender Male to Male
Fastening Type Latch Lock
Features Passive, Pull Tab
Cable Type Round
Usage External
Length 6.56' (2.00m)
Color Black
Shielding Shielded
Wire Gauge 30 AWG
Current - Max/Contact 500mA
Frequency - Max 12 Gbps
Temperature Range - Operating -40°C ~ 80°C
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811198-10117949-2020LF
Ultra Librarian 3D Model Ultra Librarian 10117949-2020LF CAD Model

Description

The Amphenol ICC (FCI) 811198-10117949-2020LF is a male to male plug-to-plug connector.

  • Length: 6.56' (2.00m)
  • Positions: 36
  • Usage: External
  • Cable Type: Shielded
  • Connectors: miniSAS HD 4x
  • Fastening Type: Latch Lock
  • Features: Pull Tab
  • Current Rating: 500mA
  • Frequency: Up to 12 Gbps
  • Temperature Range: -40°C to 80°C
  • Manufacturer Pack Quantity: 20
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • MSL Level: 1 (Unlimited)
