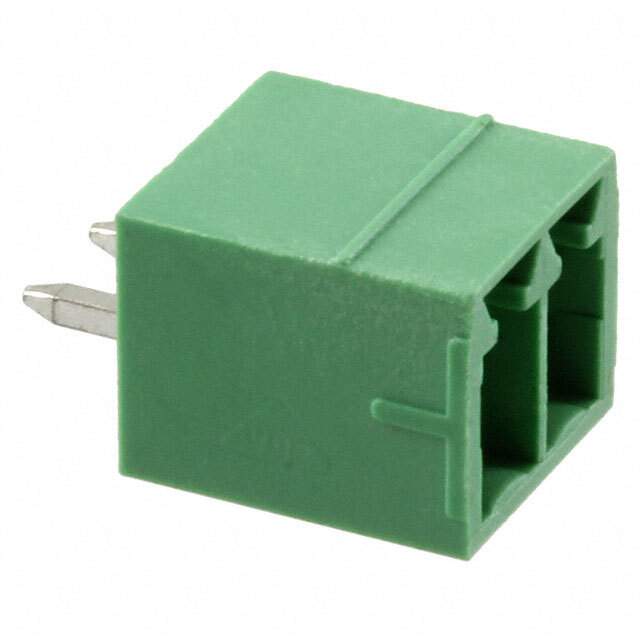

OQ0212500000G

Name: OQ0212500000G
Brand: Amphenol Anytek
SKU: 1332149
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	OQ0212500000G
Manufacturer	Amphenol Anytek
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 2POS VERT 3.5MM / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Datasheet	OQ0212500000G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Amphenol Anytek
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - UL	10 A
Voltage - UL	300 V
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Thermoplastic Resin
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.362" (9.20mm)
Base Product Number	OQ02
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	OQ02125000J0G,OQ02125000J0G-ND,20020107-C021A01LF,20020107-C021A01LF-ND,609-4981,OQ0212500000GINACTIVE,OQ0212500000G-ND
Standard Package	2,000
Win Source Part Number	1332149-OQ0212500000G
Ultra Librarian 3D Model	Ultra Librarian OQ0212500000G CAD Model

Alternative Products

Description

The Amphenol Anytek header, male pins, shrouded (4 side) is a type of terminal block with 2 positions per level and 2 levels.

Pitch: 0.138" (3.50mm)
Header Orientation: vertical
Termination Style: solder
Current - UL: 10A
Voltage - UL: 300V
Housing Material: thermoplastic resin
Material Flammability Rating: UL94 V-0
Package: 2,000 pieces
Mounting: through hole
