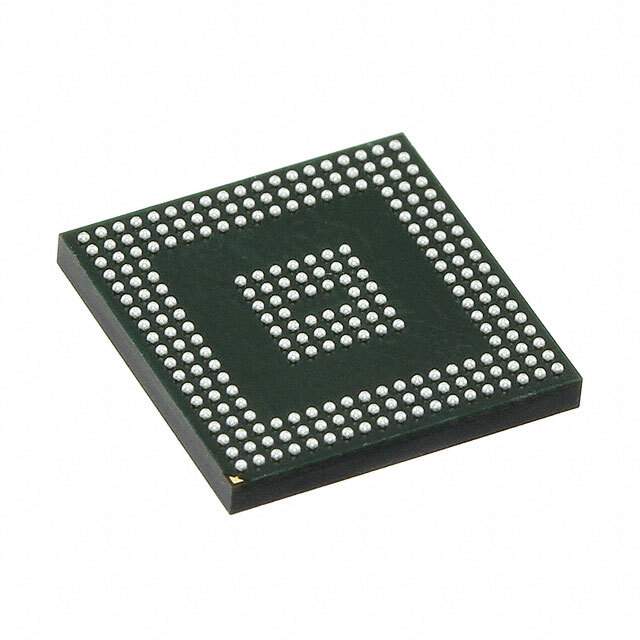

XC7A50T-2CPG236C Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD Xilinx
Series Artix-7
Package Tray
Number of LABs/CLBs 4075
Number of Logic Elements/Cells 52160
Total RAM Bits 2764800
Number of I/O 106
Voltage - Supply 0.95V ~ 1.05V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 238-LFBGA, CSPBGA
Supplier Device Package 238-CSBGA (10x10)
Base Product Number XC7A50
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 240
Win Source Part Number 1199913-XC7A50T-2CPG236C
Ultra Librarian 3D Model Ultra Librarian XC7A50T-2CPG236C CAD Model

Description

The Artix-7 series of the AMD electronic component is an integrated circuit that falls under the category of embedded FPGAs.

  • Win Source Part Number: 1199913-XC7A50T-2CPG236C
  • Mounting: SMD (SMT)
  • I/O: 106
  • LABs/CLBs: 4075
  • Logic Elements/Cells: 52160
  • Total RAM Bits: 2764800
  • Package: Tray
  • Standard Package: 240
  • Voltage Supply: 0.95V to 1.05V
  • Temperature Range: 0°C to 85°C (TJ)
