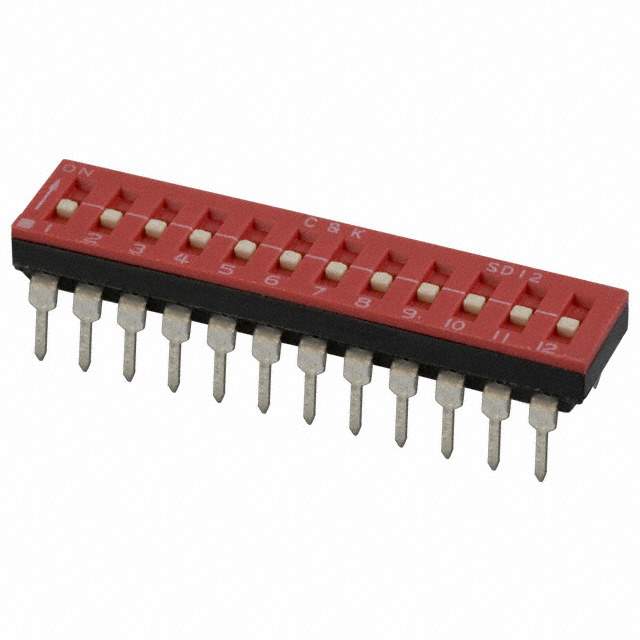

SD12H0K Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 12
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 1.258" (31.95mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Other Names SD12HOK,*SD12H0K,CKN3073
Standard Package 15
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233799-SD12H0K
Ultra Librarian 3D Model Ultra Librarian SD12H0K CAD Model

Description

The SD12H0K DIP switch from C&K is a SPST circuit switch with a through-hole mounting style.

  • Number of Positions: 12
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Full
  • Seal: Tape
  • Contact Finish: Gold
  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Height Above Board: 0.178" (4.52mm)
  • Length: 1.258" (31.95mm)
  • Body Material: Polybutylene Terephthalate (PBT)
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Actuator Level: Flush and Recessed
  • Washable: Yes
  • Series: SD
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • Product Status: Obsolete
  • RoHS Non-Compliant: Yes
