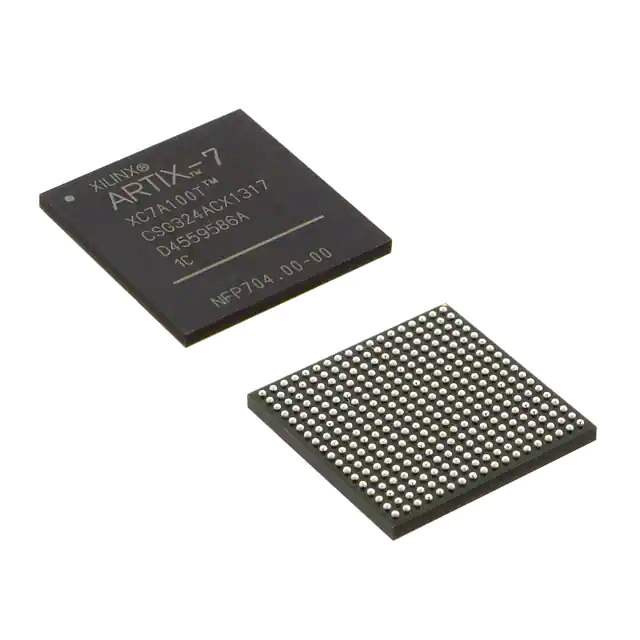

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr AMD
Series Artix-7
Package Tray
Product Status Active
Programmable Not Verified
Number of LABs/CLBs 7925
Number of Logic Elements/Cells 101440
Total RAM Bits 4976640
Number of I/O 210
Voltage - Supply 0.95V ~ 1.05V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 324-LFBGA, CSPBGA
Supplier Device Package 324-CSPBGA (15x15)
Base Product Number XC7A100
Standard Package 126 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 852715-XC7A100T-1CSG324C
Ultra Librarian 3D Model Ultra Librarian XC7A100T-1CSG324C CAD Model

Description

The XC7A100T-1CSG324C is an FPGA (Field Programmable Gate Array) from the Artix-7 series by AMD.

  • Application: embedded applications
  • Package: tray
  • Standard Package: 126 pieces
  • I/O Pins: 210
  • LABs/CLBs: 7925
  • Logic Elements/Cells: 101440
  • Total RAM Capacity: 4976640 bits
  • Voltage Range: 0.95V to 1.05V
  • Mounting Type: surface mount
  • Package: 324-LFBGA
  • Supplier Device Package: 324-CSPBGA (15x15)
  • Temperature Range: 0°C to 85°C (TJ)
  • Product Status: active
