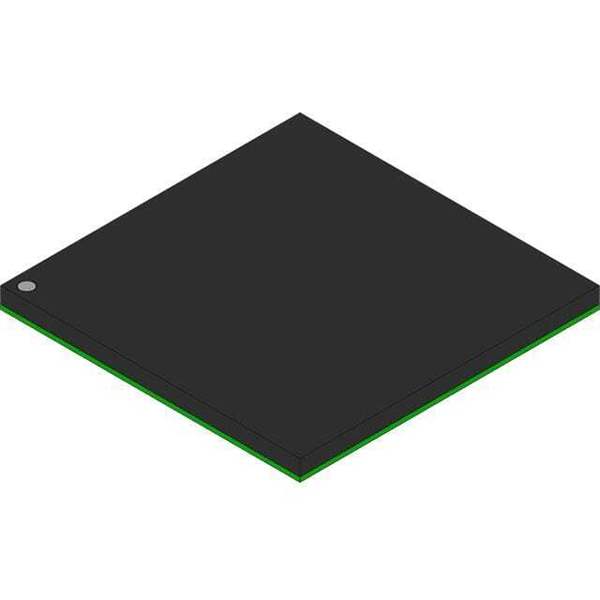

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Bulk
Core Type 32-Bit ARM9
Speed 200 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 32K
Data SRAM Bytes 16K
FPGA Core Cells 4160
FPGA Gates 100K
Voltage - Supply 1.8V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 100°C
Package / Case 484-BBGA
Supplier Device Package 484-FBGA (23x23)
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Other Names ALTALTEPXA1F484I2,2156-EPXA1F484I2
Standard Package 1
Win Source Part Number 1221858-EPXA1F484I2
Ultra Librarian 3D Model Ultra Librarian EPXA1F484I2 CAD Model

Description

The Altera EPXA1F484I2 is a 32-bit ARM9 core type FPGA with 4160 core cells, 100K gates, and a 1.8V voltage supply from Altera.

  • Core Type: 32-bit ARM9
  • Core Cells: 4160
  • Gates: 100K
  • Voltage Supply: 1.8V
  • Program SRAM Bytes: 32K
  • Data SRAM Bytes: 16K
  • Mounting Type: SMD (SMT)
  • Package: 484-BBGA
  • RoHS: Non-Compliant
