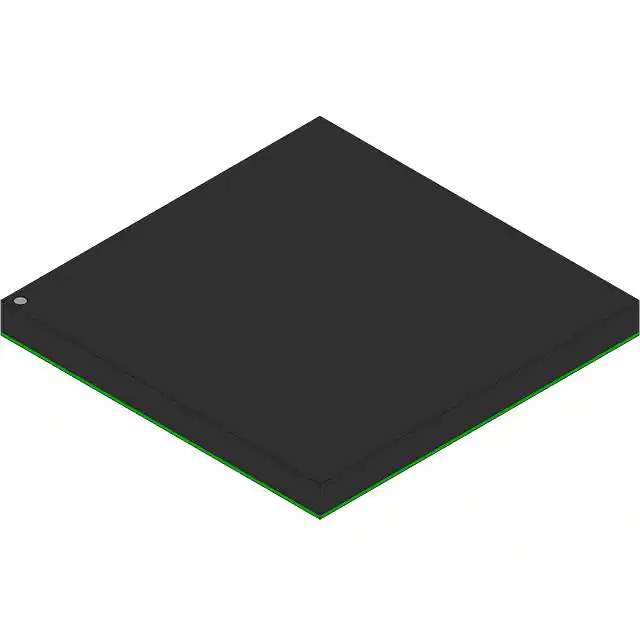

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Tray
Product Status Obsolete
Core Type 32-Bit ARM9
Speed 166 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 256K
Data SRAM Bytes 128K
FPGA Core Cells 38400
FPGA Gates 1M
Voltage - Supply 1.8V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C
Package / Case 1020-BBGA, FCBGA
Supplier Device Package 1020-FBGA (33x33)
Standard Package 4 pcs
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 918490-EPXA10F1020C3
Ultra Librarian 3D Model Ultra Librarian EPXA10F1020C3 CAD Model

Description

The 918490-EPXA10F1020C3 is a unique integrated circuit that combines a field-programmable gate array (FPGA) with a 32-bit ARM9 microcontroller.

  • Speed: 166 MHz
  • Package Type: 1020-BBGA
  • Voltage Supply: 1.8V
  • Part Status: Obsolete
